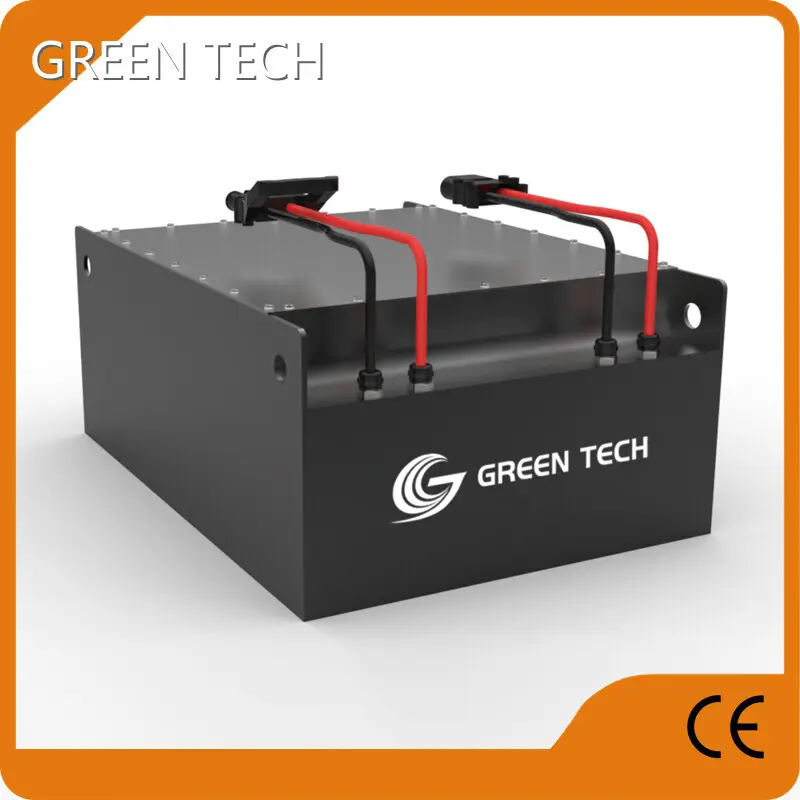

Deep Cycle Marine Battery EM Seriesdesign

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-24V5000-F
Energy storage	5.0kWh
Nominal Voltage	24Vdc
Maximum Charge Voltage	29Vdc
Discharge Cut-off Voltage	20Vdc
ESR/AC @1KHz 50% SOC	<10mΩ
Max. Continuous Charge Current	250A
Max. Continuous Discharge Current	250A
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Charge Temperature	0℃~+55℃
Discharge Temperature	-20℃~+60℃
Cooling Method	Natural
Shell Material	Metal & ABS plastic
Parallel Connection	Recommend within 10sets
Monitoring Data	SOC,voltage, module

Weight	190kg
Dimensions(WxDxH)	645x565x245(mm)
Mount Options	Wall / floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· The raw materials used in the production of deep cycle marine battery are of premium quality.

· With the support from our experts, the product is in strict compliance with the industry quality standards.

· has established a sound quality control system to make sure the quality of the product.

Company Features

· After years of engagement in manufacturing deep cycle marine battery, has been a well-positioned and reliable manufacturer with years of experience.

· While cultivating its own R&D team, also actively cooperates with many research institutes.

· In order to promote the happiness level of society, our company treats every employee equally without discrimination on ethnics or physical defects. Inquire!

Application of the Product

The deep cycle marine battery produced by is widely used in many industry sectors.

With a focus on is dedicated to providing reasonable solutions for customers.
