Electrical Energy Storage System 120A 1
Electrical Energy Storage System 120A 2
Electrical Energy Storage System 120A 3
Electrical Energy Storage System 120A 1
Electrical Energy Storage System 120A 2
Electrical Energy Storage System 120A 3

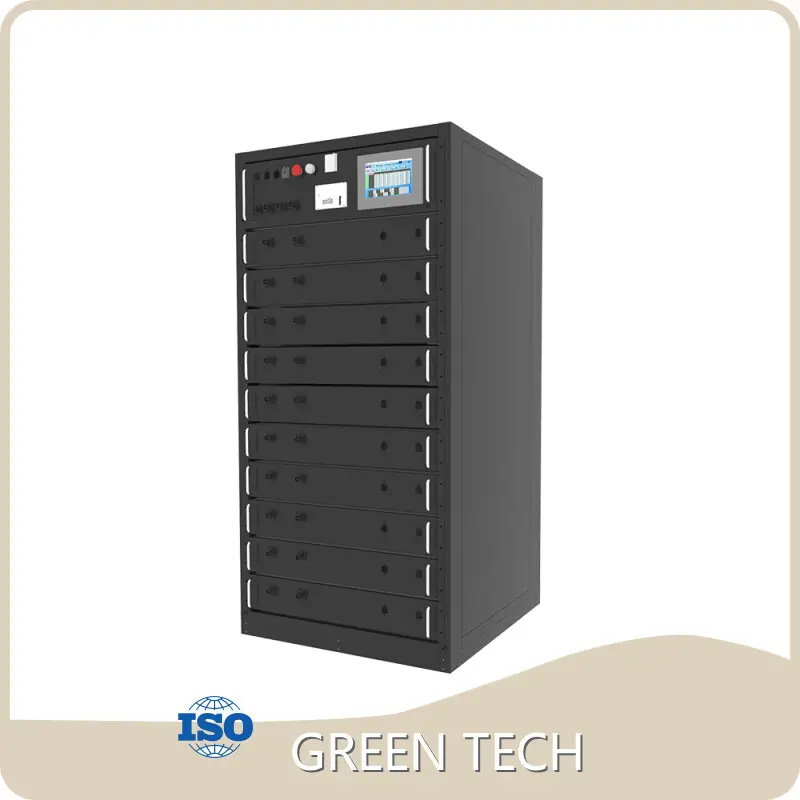

Electrical Energy Storage System 120A

Weight:
1315kg
Series:
EF Series
Max. Continuous Charge Current:
120A
Energy storage:
107.5kWh
Discharge Cut-off Voltage:
448Vd.c
Inquiry

Product details of the electrical energy storage system


Product Description

Premium raw materials: electrical energy storage system is made of high-quality raw materials that are only selected from qualified and certified suppliers. Meanwhile, the raw materials of this product go through rigorous screening before production. The product is highly praised and has a long service life. Our electrical energy storage system is in great demand and we have on hand many enquiries from other countries.

Product Parameters
General Characteristics
Mechanical Specifications

Part Number

GTEF-512V50KW/100KWH-R

Energy storage

107.5kWh

Nominal Voltage

512Vd.c

Maximum Charge Voltage

576Vd.c

Discharge Cut-off Voltage

448Vd.c

ESR/AC @1KHz 50% SOC

<100mΩ

Max. Continuous Charge Current

120A

Max. Continuous Discharge Current

120A

Operating Humidity

0~90% RH Non-condensing

Cells Self-discharge Rate

2% per month

Projected Cycle Life ( 25℃)

10,000 times

Recommended Depth of Discharge

≤ 90%

Maximum Depth of Discharge

100%

Monitoring Data

System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage

Terminal

Large power energy storage terminals

Environmental Protection

IP20 Indoor

Shell Material

Metal

Parallel Connection

No limited ( add controller box )

communication

CAN, RS485, TCP

Weight

1315kg

Dimensions(WxDxH)

801x832x1629(mm)

Mount Options

On floor

Certificate Options
