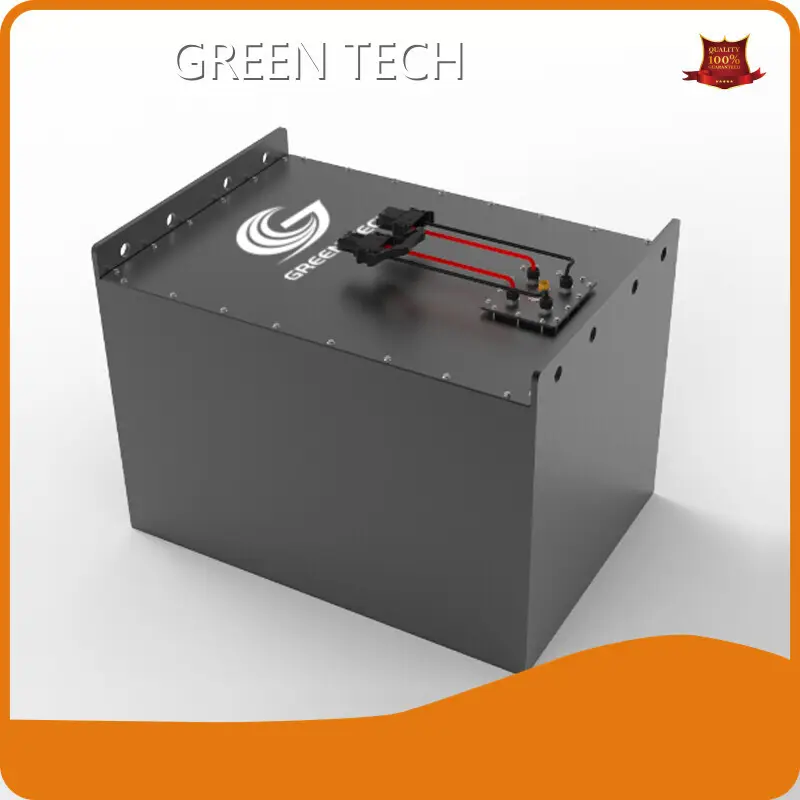

Electrical Energy Storage System 18.72kWh

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-72V18720-F
Energy storage	18.72kWh
Nominal Voltage	72Vdc
Maximum Charge Voltage	84Vdc
Discharge Cut-off Voltage	56Vdc
ESR/AC @1KHz 50% SOC	<50mΩ
Max. Continuous Charge Current	150A
Max. Continuous Discharge Current	150A
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Charge Temperature	0℃~+55℃
Discharge Temperature	-20℃~+60℃
Cooling Method	Natural
Shell Material	Metal & ABS plastic
Parallel Connection	Recommend within 10sets
Monitoring Data	SOC,voltage, module

Weight	230kg
Dimensions(WxDxH)	740x540x320(mm)
Mount Options	Wall / floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· The production of electrical energy storage system ensures the accuracy of specifications.

· This product is with the perfect performance to support the user need.

· Every production stage is highly valued to achieve high quality of electrical energy storage system.

Company Features

· As an exporter in the electrical energy storage system field, has established many customer relationships.

· has a group of high-quality technical team and standardized management.

· sticks to the going-out strategy and aims to be an international brand.

Application of the Product

The electrical energy storage system produced by our company is widely used.

We will communicate with our customers to understand their situations and provide them with effective solutions.
