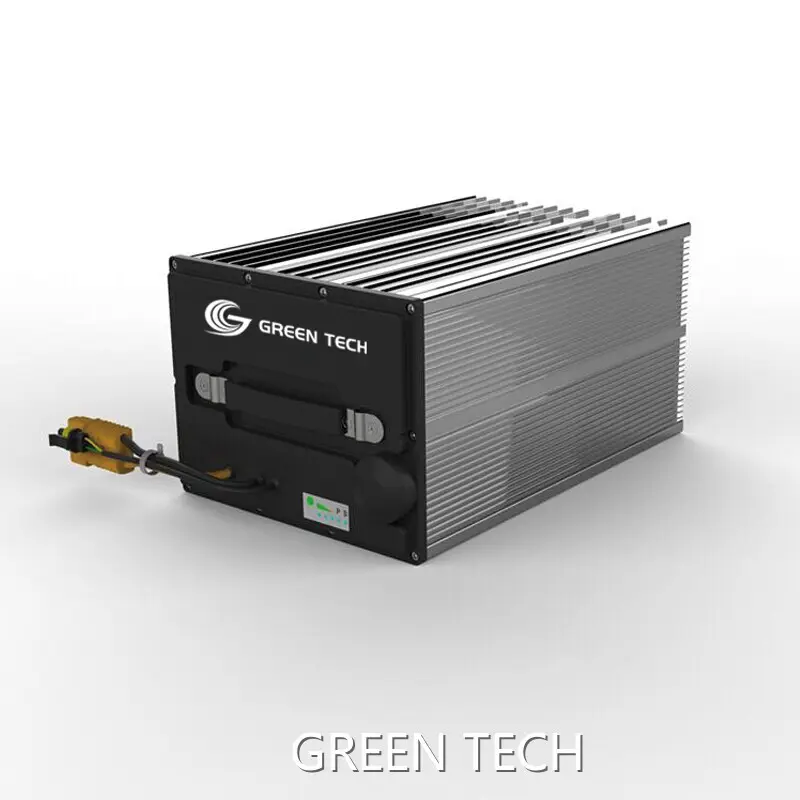

Electrical Energy Storage System 80A

Product details of the electrical energy storage system

Product Introduction

The material used in electrical energy storage system is designed and created independently by Our highly specialized experts ensure the product to meet high level of quality. The betterment and confirmation of this product help meet the requirements of consumers.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-60V1560-M
Energy storage	1560Wh
Nominal Voltage	60Vdc
Maximum Charge Voltage	71.4Vdc
Discharge Cut-off Voltage	47.6Vdc
ESR/AC @1KHz 50% SOC	<30mΩ
Max. Continuous Charge Current	80A
Max. Continuous Discharge Current	80A
Cut-off current (charging)	4A
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	SOC,voltage,current, temperature
Series Connection	Not allowed
Parallel Connection	Recommend within 10sets
Series-Parallel Connection	Not allowed

Weight	20kg
Dimensions(WxDxH)	230x180x360(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Feature

• Since the establishment in has insisted on learning advanced management concepts from our peers. Meanwhile, we fulfill our unique advantages, only to strive for the fastest growth in the shortest possible time.
• are deeply trusted by customers. They occupy a large market share in China and are exported to Europe, America, Southeast Asia, and other countries and regions.
• enjoys a superior geographical position with traffic convenience. This is advantageous for the transportation of the product.
Hello, welcome to this site! If you are interested in products, please leave your contact information or directly contact us for more product details. It is our honor to receive your call and create a bright future with you!
