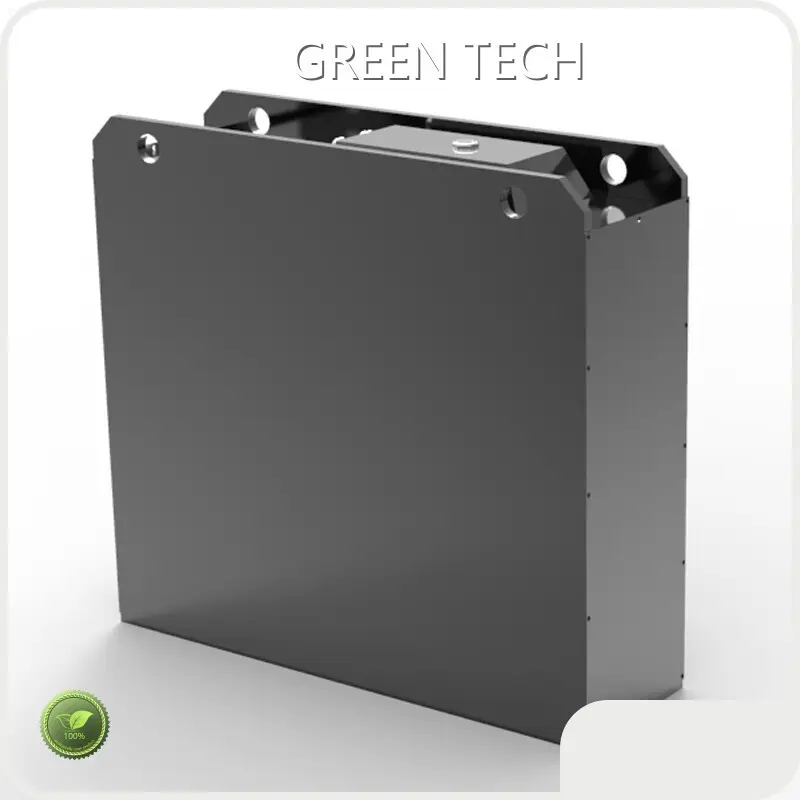

Electrical Energy Storage System Made in China Fast Delivery

Product details of the electrical energy storage system

Product Information

electrical energy storage system strictly adopts superior raw material for better performance. Our qualified team effectively controls this high quality product by implementing the quality control system. It has good economic value and broad market acceptance.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEG-23V4180-F
Energy storage	4.18kWh
Nominal Capacity	182Ah
Nominal Voltage	23Vdc
Absolute Maximum Voltage	28Vdc
Cut-off Voltage (discharging)	18Vdc
Configuration	10S13P
Pack resistance	< 10 mΩ
Continuous Charge Current	150A
Continuous Discharge Current	150A
Peak Discharge Current	300A
Recommended Depth of Discharge	90%
Maximum Depth of Discharge	100%
Cooling	Natural cooling
Ingress Protection	IP55
Storage Humidity	25% ~ 95%RH
Operating Humidity	0 – 90% RH
Storage Temperature	-20℃~40 ℃

Weight	225kg
Dimensions(WxDxH)	650*195*600mm
Mount Options	Wall/ floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantage

• Our company has a high-quality management team, excellent R & D team, intimate service team, and also set up a professional distribution team. All this provides a good guarantee for our product development, sales services, transportation and distribution.
• Over the past years, has accumulated rich production experience and has become a long-term supplier of large companies in the domestic market.
• Our company has established a sound marketing network and service system, and the service range can cover the whole country.
For more detailed specifications, types or applications of feel free to consult
