Energy Storage Solution 100A Wholesale -

Product Parameters

General Characteristics

Mechanical Specifications

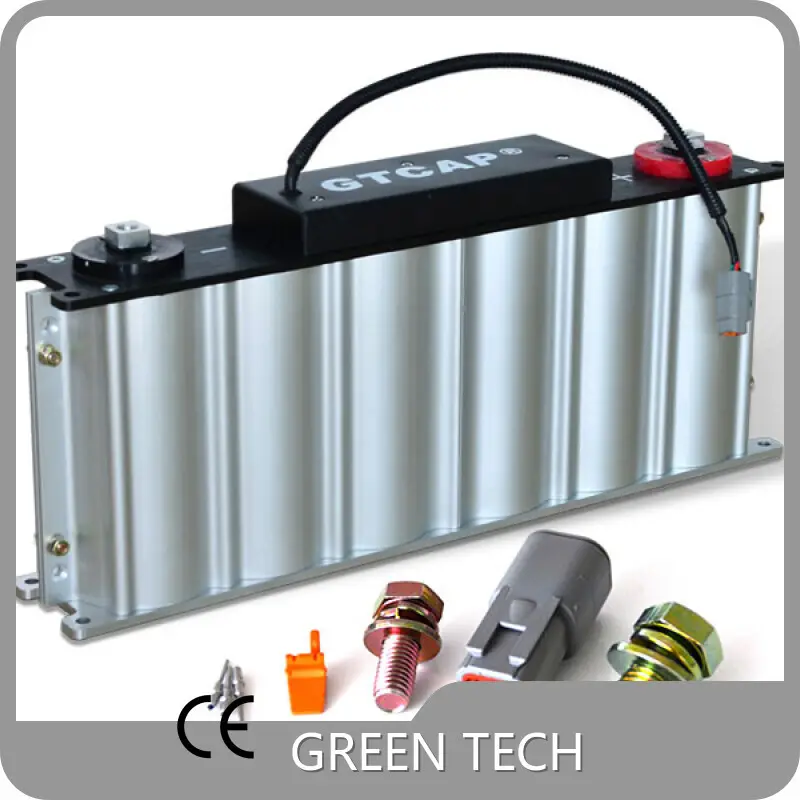

Part Number	GTSM-16V-500FUS
Nominal capacitance	500 F
Capacitance tolerance	+20% / -0%
Rated voltage	16V
Maximum absolute voltage	17V
Maximum series voltage	750V
ESR, DC	1.8mΩ
Maximum continuous current (ΔT=40℃)	100 A
Maximum peak current, 1 sec.	2,275 A
Maximum leakage current (after 72hrs @ 25℃)	5.2 mA
Operating temperature range(Cell case temperature)	-40℃ to +65℃
Storage temperature range(Storage uncharged)	-40℃ to +70℃
Power terminals	M8/M10
Recommended torque - terminal	20/30 Nm
Vibration specification	GB-T 11287-2000
Shock specification	GBT 14537-1993
Environmental protection	IP65

Weight	5.7 kg
Internal temperature sensor	NTC Thermistor
Cell voltage monitoring	Overvoltage Alarm
Usable power density (Pd)	3,590 W/kg

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· energy storage solution is provided with appealing designs and compact structure.

· The product has better durability due to its quality assurance.

· Owing to its wade range of application, the product has won many praises from customers.

Company Features

· is a world leader in the field of producing energy storage solution.

· Our products have been widely sold to Europe, America, the Middle East, and South-Eastern Asia. Most of our products, including energy storage solution, are produced based on market trends that exactly cater to customers' needs.

· provides comprehensive after-sales service and technical support. We sincerely hope to have more opportunities to work with you.

Application of the Product

energy storage solution of has very extensive application in different scenarios.

While providing quality products, is dedicated to providing personalized solutions for customers according to their needs and actual situations.
