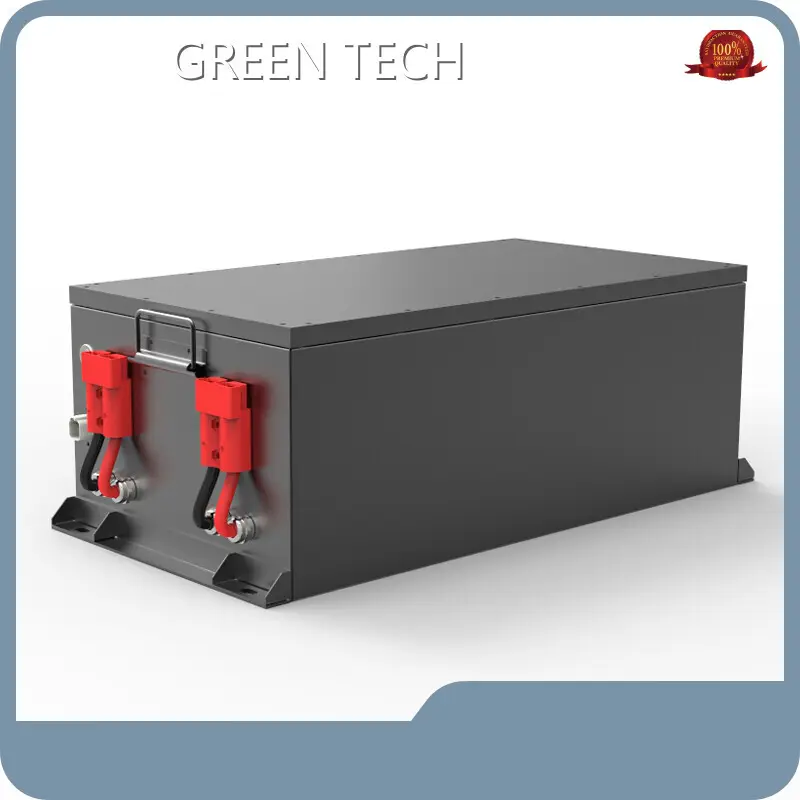

Energy Storage Solution Bulk Buy 720x355x252mm

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-48V3600-G
Energy storage	3.62kWh
Nominal Voltage	48Vdc
Maximum Charge Voltage	58.8Vdc
Discharge Cut-off Voltage	37Vdc
ESR/AC @1KHz 50% SOC	<20mΩ
Max. Continuous Charge Current	200A
Max. Continuous Discharge Current	200A
Cut-off Current (charging)	4A
Absolute Peak Current 3s	300A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle, cell’s voltage
Indicator light display	Capacity %
Environmental Protection	IP65
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Weight	55kg
Dimensions(WxDxH)	720x355x252(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· The design of energy storage solution is the combination of functionality and aesthetics.

· The product has a long-lasting performance and stable functionality.

· has established long-term cooperation with many famous energy storage solution brands.

Company Features

· achieves great success in exporting energy storage solution.

· Our company attracts and retains top talent. As technical problem-solvers for us and our customers, these people have all the skills, knowledge and capabilities of the energy storage solution industry to develop extraordinary products.

· always worked hard to provide quality services. Check now!

Application of the Product

The energy storage solution developed by is widely used in various fields.

According to different needs of customers, is capable of providing reasonable, comprehensive and the most cost-effective solutions for customers.
