Energy Storage Solution OEM at Sale

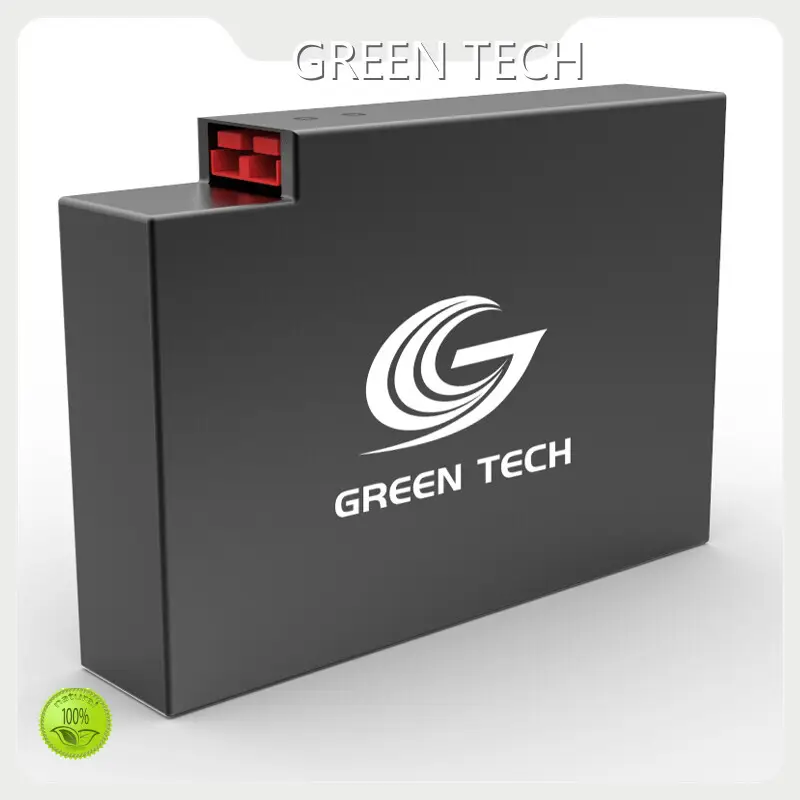

Product details of the energy storage solution

Product Description

energy storage solution is designed by our professional team who has been specializing in this field for years. The product not only has passed the domestic quality standards but also has been approved by many international certificates. It has won the favor of the world's customers with these features.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-12V138-E
Energy storage	138Wh
Nominal Voltage	12Vdc
Maximum Charge Voltage	16.8Vdc
Discharge Cut-off Voltage	9Vdc
ESR/AC @1KHz 50% SOC	<10Ω
Max. Continuous Charge Current	100A
Max. Continuous Discharge Current	100A
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Round Trip Efficiency*1	96%
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Cooling Method	Natural
Shell Material	Metal & ABS plastic
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle,cell`s voltage

Weight	3.5kg
Dimensions(WxDxH)	52X242X170mm
Mount Options	Wall/ floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantage

• Our company takes customer's satisfaction as an important criterion and provides thoughtful and reasonable services for customers in a professional and dedicated attitude.
• has a mature online marketing system. are sold to major provinces, cities and autonomous regions across the country based on an online platform. Moreover, some products are exported to Europe, America, Southeast Asia, and other countries and regions.
• Our company works closely with a number of major raw material suppliers and advanced units at home and abroad to establish a benign commercial supply chain, which provides a reassurance for our company in terms of raw materials and technology.
• Our company has a unique geographical advantage, surrounded by complete supporting facilities and convenient transportation.
Hello, thanks for your interest in this site! are cost-effective, with excellent quality and favorable price. If needed, please call our service hotline to order!
