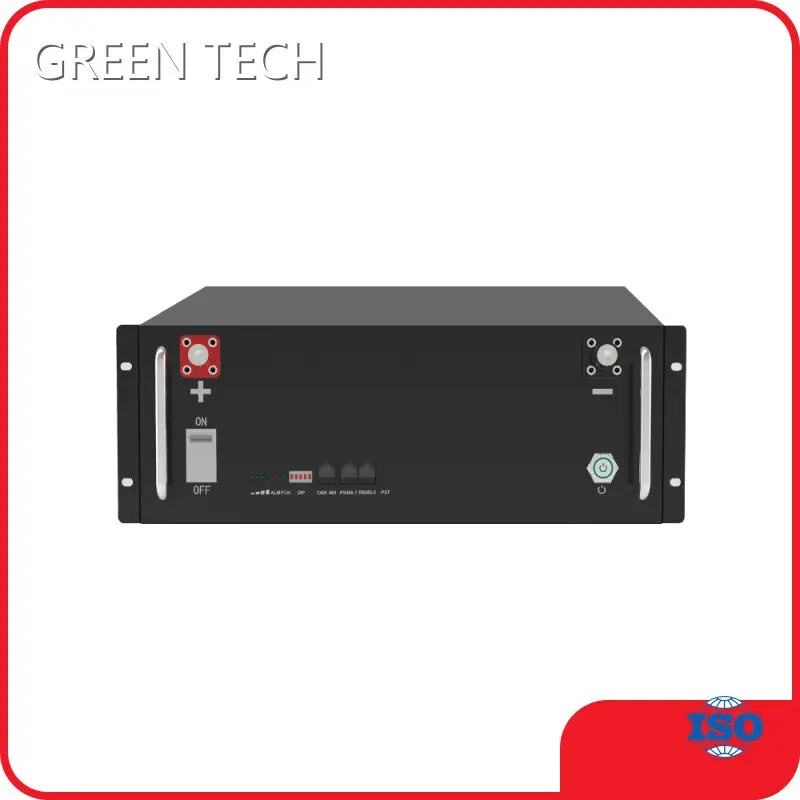

Fast Delivery Industrial Capacitor Bank 4.5kWh by 1

Fast Delivery Industrial Capacitor Bank 4.5kWh by 2

Fast Delivery Industrial Capacitor Bank 4.5kWh by 3

Fast Delivery Industrial Capacitor Bank 4.5kWh by

Series:

EF Series

Maximum Charge Voltage:

57.6Vdc

Energy storage:

4.5kWh

Discharge Cut-off Voltage:

44.8Vdc

Dimensions(WxDxH):

486x590x133.3(mm)

Inquiry

more products

Capwall

Graphene Supercapacitor Battery

Solid-state Supercapacitor Battery

Hybrid Inverter

Complete Residential Solar Power Systems

Send your inquiry

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEF-48V4500-E
Energy storage	4.71kWh
Capacity	92Ah
Nominal Voltage	51.2Vdc
Maximum Charge Voltage	57.6Vdc
Discharge Cut-off Voltage	44.8Vdc
ESR/AC @1KHz 50% SOC	<20mΩ
Max. Continuous Charge Current	50A
Max. Continuous Discharge Current	50A
Communication	CAN, RS485
Monitoring Data	System,voltage,current, temperature,SOC,SOH,cells’ voltage
Protection & Alarms	Over charge,over current,over temperature,over discharge
Anti-theft	Intelligent software lock; GPS, displacement lock,buzzer alarm
Projected Cycle Life ( 25℃)	6,000 times
Recommended Depth of Discharge	≤95%
Maximum Depth of Discharge	95%
Shell Material	Metal & ABS plastic
Cooling Method	Natural
Series Connection	Not allowed
Parallel Connection	Up to 16sets (need to clarify when place order)
Series and Parallel Connection	Add controller box (need to clarify when place order)

Weight	38kg
Dimensions(WxDxH)	486x590x133.3(mm)
Mount Options	Standard 19” rack mounted

Certificate Options

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Advantages

· The aesthetic appearance of industrial capacitor bank is achieved by using quality materials and the latest technologies.

· The quality of the product is in complete compliance with the set industry standards.

· To ensure the overall quality of industrial capacitor bank, it is effective to establish the quality awareness in

Company Features

· is the largest industrial capacitor bank production base in China.

· We have brought together a team of experienced designers. With their years of experience in the field of industrial capacitor bank, they are able to help the company design products with functionality, performance, as well as visual appeal.

· consistently sets customer first as the business philosophy. Get quote!

Application of the Product

The industrial capacitor bank produced by our company is widely used.

has been engaged in the production of for many years and has accumulated rich industry experience. We have the ability to provide comprehensive and quality solutions according to actual situations and needs of different customers.
