For House Capacitor Bank 51.8Vdc by

Product details of the capacitor bank

Quick Detail

capacitor bank is designed with excellent crafts and manufactured by our professional team. The latest idea of its capacitor bank combines the advanced technology and fashionable trend together. capacitor bank is widely applicable in the industry. The global trade network makes the best choice for the market and your best partner.

Product Information

The following is the section for presenting capacitor bank's details.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-48V10k-B
Energy storage	10kWh
Nominal Voltage	51.8Vdc
Nominal Capacity	210Ah
Maximum Charge Voltage	58Vdc
Discharge Cut-off Voltage	40Vdc
ESR/AC @1KHz 50% SOC	<15mΩ
Max. Continuous Charge Current	200A
Max. Continuous Discharge Current	200A
Absolute Peak Current 3s	300A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Stainless steel
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle, cell’s voltage
Indicator light display	Capacity %
Environmental Protection	IP65
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Weight	82kg
Dimensions(WxDxH)	1124x400x256(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

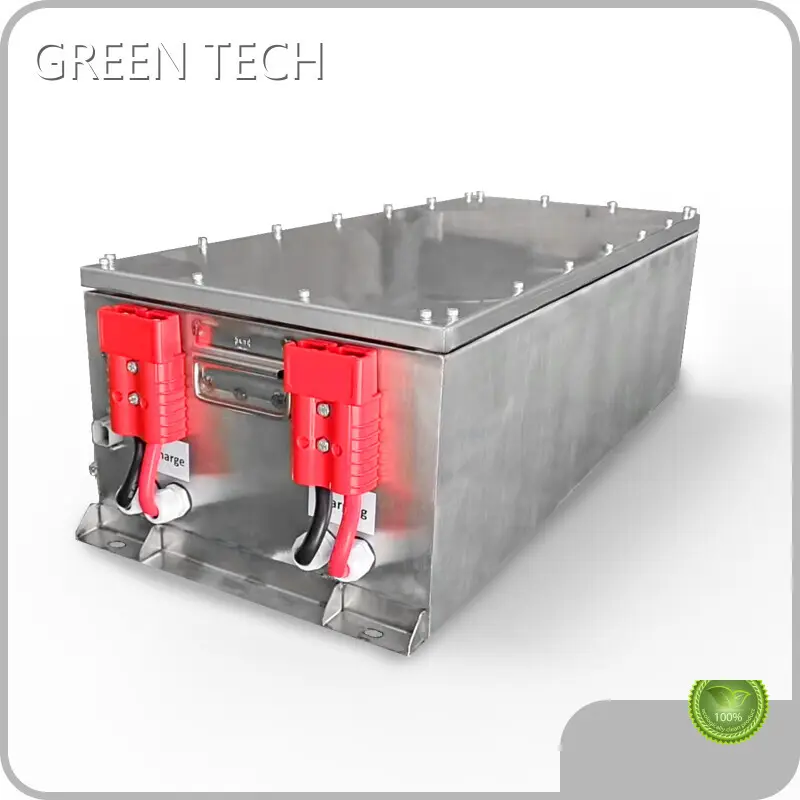

GTEM-48V10K-B Battery

Company Information

is the largest and most powerful capacitor bank operation in the world. We have a long-term and stable market in China, the United States, Japan, Canada, etc. The R&D team has been working hard to create more products including capacitor bank to cater to the market demands of various countries. We firmly believe that high-quality and professional service will eventually pay off.
We only produce high-quality products. Welcome customers to contact customer service staff for consultation!
