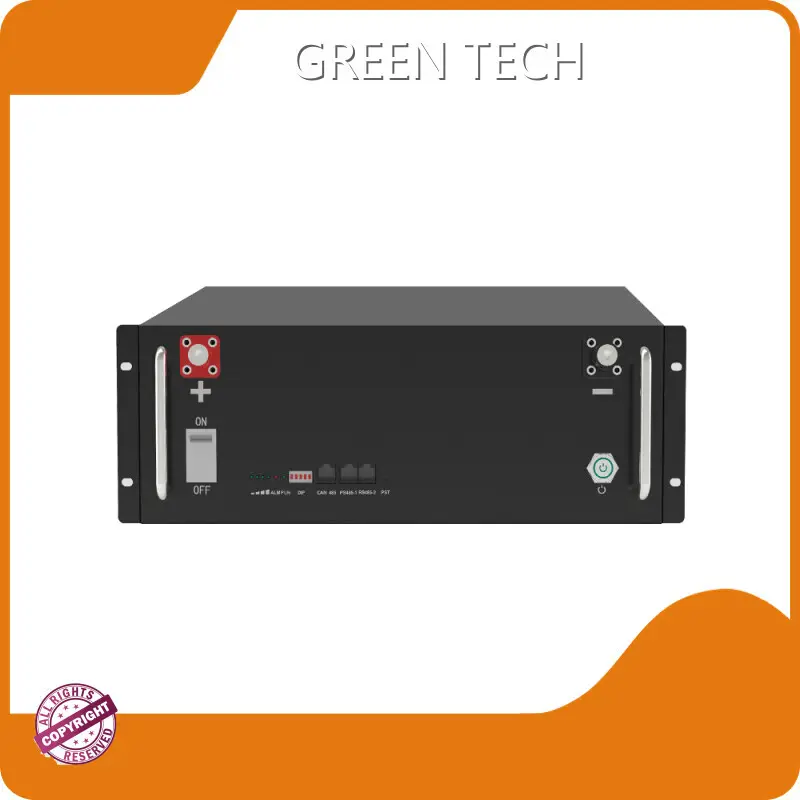

For Workplace Solar Home Batteries 38kg by 1
For Workplace Solar Home Batteries 38kg by 2
For Workplace Solar Home Batteries 38kg by 3
For Workplace Solar Home Batteries 38kg by 1
For Workplace Solar Home Batteries 38kg by 2
For Workplace Solar Home Batteries 38kg by 3

For Workplace Solar Home Batteries 38kg by

Weight:
38kg
Max. Continuous Discharge Current:
50A
Energy storage:
4.5kWh
Discharge Cut-off Voltage:
44.8Vdc
Dimensions(WxDxH):
486x590x133.3(mm)
Inquiry
Send your inquiry

Company Advantages

· We closely follow international standards in solar home batteries's design and material.

· The product is given a longer service time by our dedicated R&D team.

· Experienced quality check team are equipped in to be dedicated into producing solar home batteries with high quality.

Product Parameters
General Characteristics
Mechanical Specifications

Part Number

GTEF-48V4500-E

Energy storage

4.71kWh

Capacity

92Ah

Nominal Voltage

51.2Vdc

Maximum Charge Voltage

57.6Vdc

Discharge Cut-off Voltage

44.8Vdc

ESR/AC @1KHz 50% SOC

<20mΩ

Max. Continuous Charge Current

50A

Max. Continuous Discharge Current

50A

Communication

CAN, RS485

Monitoring Data

System,voltage,current, temperature,SOC,SOH,cells’ voltage

Protection & Alarms

Over charge,over current,over temperature,over discharge

Anti-theft

Intelligent software lock; GPS, displacement lock,buzzer alarm

Projected Cycle Life ( 25℃)

6,000 times

Recommended Depth of Discharge

≤95%

Maximum Depth of Discharge

95%

Shell Material

Metal & ABS plastic

Cooling Method

Natural

Series Connection

Not allowed

Parallel Connection

Up to 16sets (need to clarify when place order)

Series and Parallel Connection

Add controller box (need to clarify when place order)

Weight

38kg

Dimensions(WxDxH)

486x590x133.3(mm)

Mount Options

Standard 19” rack mounted

Certificate Options
1 (10)
1 (10)
2 (9)
2 (9)
3 (7)
3 (7)
4 (7)
4 (7)
5 (8)
5 (8)
6 (11)
6 (11)
7 (6)
7 (6)


Company Features

· With rich experience and excellent technology, is a leading brand enterprise in solar home batteries industry.

· We conduct business all over the world. We are constantly improving the service spectrum to reach customers easily from Asia to Africa, from Europe to America, in short, all over the world, without being confined to the domestic solar home batteries market.

· As an experienced manufacturer of solar home batteries, we will definitely satisfy you. Get price!


Product Details

With a focus on quality, pays great attention to the details of solar home batteries.


Application of the Product

The solar home batteries produced by can be used in many fields.

While providing quality products, is dedicated to providing personalized solutions for customers according to their needs and actual situations.


Enterprise Advantages

has a professional technical team and a strong business team to guarantee high technical value and sufficient market supply of products.

sets up service outlets in key areas, so as to make a rapid response to customers' requirement.

Our company adheres to the core concept of 'creating value and pursuing excellence', and the vision of 'becoming a great company with global status and respect'.

It has been a development of years since was built in

are only sold well throughout the country, but also exported to Europe, America, Southeast Asia, the Middle East, and other countries and regions. And the market share continues to grow.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
