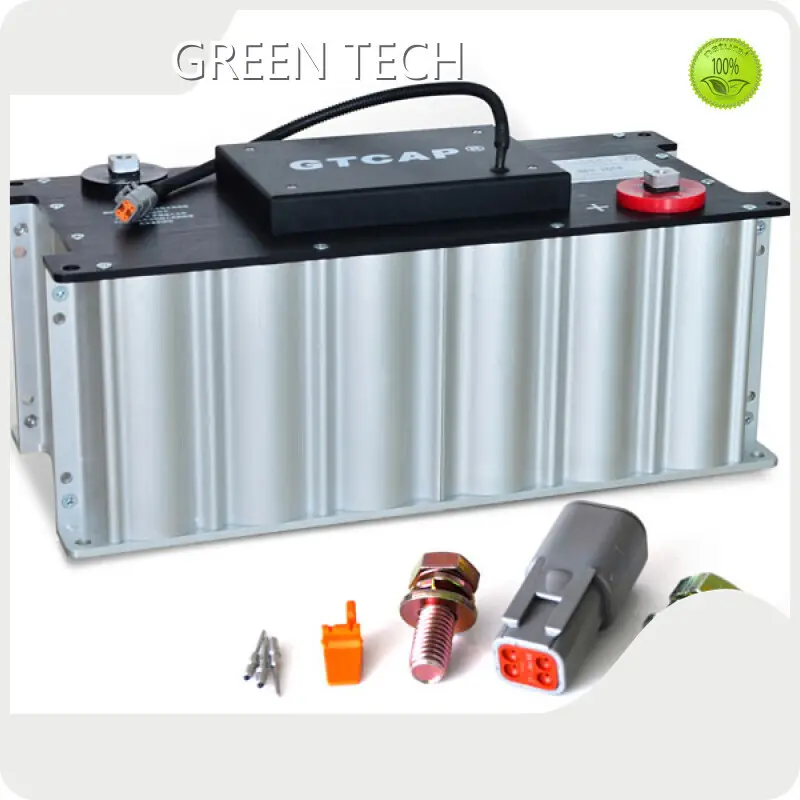

Good Selling Panel Capacitor Bank Best Factory Price

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTSM-48V165FUS
Nominal capacitance	125 F
Capacitance tolerance	-10%~~+20%
Rated voltage	48V
Maximum absolute voltage	51V
ESR, DC	5 mΩ
Maximum continuous current (ΔT=40℃)	100 A
Maximum peak current, 1 sec.	2,275 A
Maximum leakage current (after 72hrs @ 25℃)	5.2 mA
Operating temperature range (Cell case temperature)	-40℃ to +65℃
Storage temperature range(Storage uncharged)	-40℃ to +70℃
Power terminals	M8 Screw Hole
Negative Terminal	M10 Screw Hole
Recommended torque - terminal	20/30 Nm
Vibration specification	SAE J2380 ISO16750-2, T14
Shock specification	SAE J2464
Colling	Natural Convection

Weight	20kg
Environmental protection	IP65
Internal temperature sensor	NTC Thermistor
Cell voltage monitoring	Overvoltage Alarm

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· The main components of panel capacitor bank are made from imported materials.

· This product undergoes in-house quality assurance procedures conducted by our QC team.

· combines the traditional channels and Internet channels, making the trade more efficient and enriching.

Company Features

· is an experienced and professional producer of panel capacitor bank that is highly admired and respected in the marketplace.

· Our team of manufacturing experts has years of combined experience in the panel capacitor bank industry. They use their depth of experience to solve challenges from customers and bring them substantial results.

· will adhere to the marketing of panel capacitor bank style culture. Call!

Application of the Product

panel capacitor bank, one of main products, is deeply favored by customers. With wide application, it can be applied to different industries and fields.

With a focus on customers, analyzes problems from the perspective of customers. And we provide customers with comprehensive, professional and excellent solutions.
