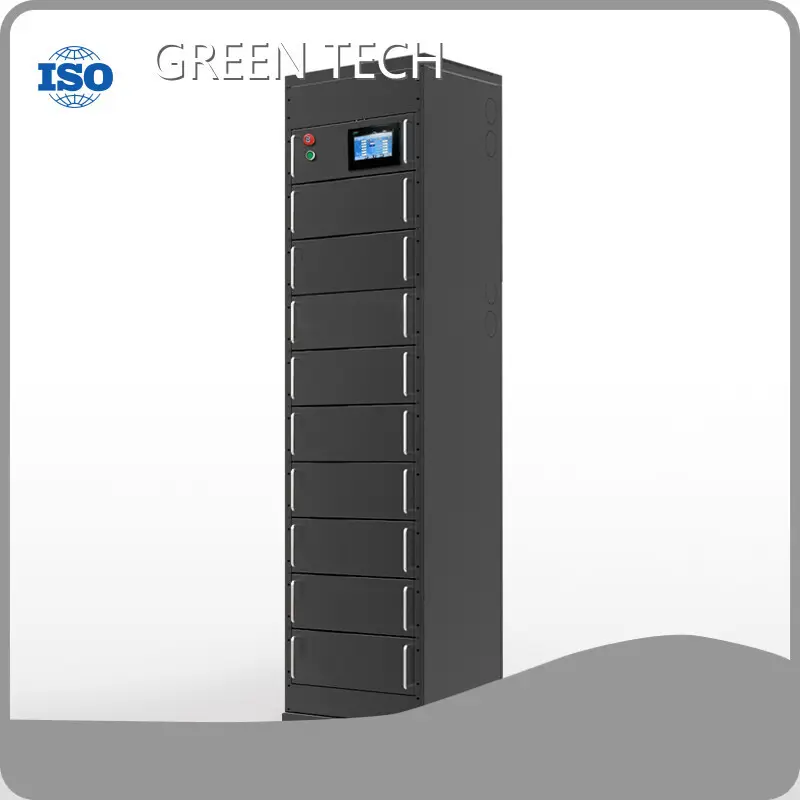

Graphene Batteries for Electric Cars 703.8Vdc GTEG-700V39K-R 856.8Vdc Warranty

Product details of the graphene batteries for electric cars

Product Introduction

The raw materials of graphene batteries for electric cars are fully guaranteed by our materials department. The quality inspection throughout all stages of production ensures the consistent quality of this product. Under perfect quality inspection system, graphene batteries for electric cars is of good enough quality.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEG-700V39K-R
Energy storage	39.4kWh
Nominal Voltage	703.8Vdc
Maximum Charge Voltage	856.8Vdc
Discharge Cut-off Voltage	642.6Vdc
ESR/AC @1KHz 50% SOC	<100mΩ
Max. Continuous Charge Current	280A
Max. Continuous Discharge Current	280A
Discharge rate	5C
Max. Continuous Output Power	196kW
Charge Temperature*1	-20℃~+60℃
Discharge Temperature*2	-40℃~+60℃
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	50,000 times
Recommended Depth of Discharge	≤ 90%
Maximum Depth of Discharge	100%
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage
Terminal	Large power energy storage terminals
Environmental Protection	Indoor
Cooling Method	Liquid cooling ( cycle frequently )
Shell Material	Metal
Parallel Connection	No limited ( add controller box )
communication	CAN, RS485

Weight	580kg
Dimensions(WxDxH)	560x700x1804(mm)
Mount Options	On floor

Certificate

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Feature

• location enjoys traffic convenience and complete facilities and good comprehensive environment. All these are good for the efficient transportation of br /> • Our company has a perfect sales system. So our products are not only sold well in various provinces, cities and autonomous regions in China, but also exported to different countries and regions overseas.
• Our company thinks highly of the introduction and cultivation of talents. In order to develop rapidly, we have a team of experienced and professional high-quality talents.
Welcome to If you are interested in our and would like to cooperate with us, please leave your contact information. We will communicate with you about relevant matters.
