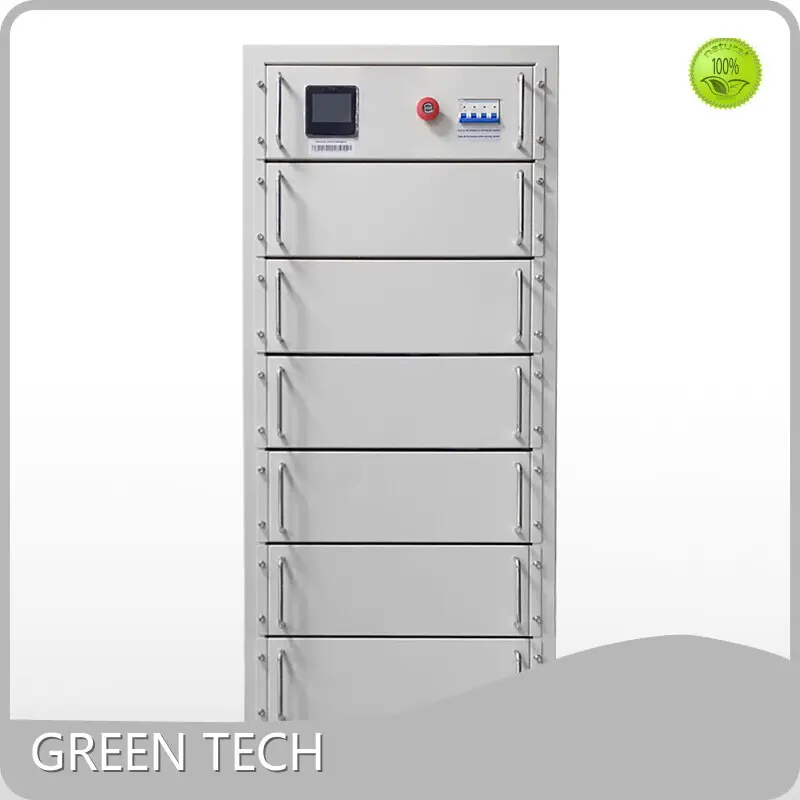

Graphene Batteries for Electric Cars GTEM-700V25K-R Brand 412kg

Product details of the graphene batteries for electric cars

Product Introduction

Selection of materials is another prominent feature of graphene batteries for electric cars. This product has a perfect function and reliable performance. With strong ability in advanced technology, can also offer graphene batteries for electric cars service to meet the requirements of customers.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-700V25k-R
Energy storage	25.3kWh
Nominal Voltage	702Vdc
Maximum Charge Voltage	83.16Vdc
Discharge Cut-off Voltage	554.4Vdc
ESR/AC @1KHz 50% SOC	<100mΩ
Max. Continuous Charge Current	50A
Max. Continuous Discharge Current	100A
Discharge rate	2.77C
Max. Continuous Output Power	70kW
Charge Temperature*1	0℃~+55℃
Discharge Temperature*2	-30℃~+60℃
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤ 90%
Maximum Depth of Discharge	100%
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage
Terminal	Large power energy storage terminals
Environmental Protection	Indoor
Cooling Method	Natural cooling
Shell Material	Metal

Weight	420kg
Dimensions(WxDxH)	560x732x1600(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Feature

• Our company pays attention to product quality and service quality. We have specifically set up a customer service department to provide customers with the most comprehensive and thoughtful service. The range of services varies from providing the latest information to helping customers solve difficult problems.
• The natural resources around are abundant. The geographical condition is excellent which brings developed information and traffic convenience.
• Our we produce are favored by many foreign customers and the export destination is mainly in most countries and regions in Southeast Asia, South Asia and Africa.
We are sincerely looking forward to establishing a long-term cooperation with all customers!
