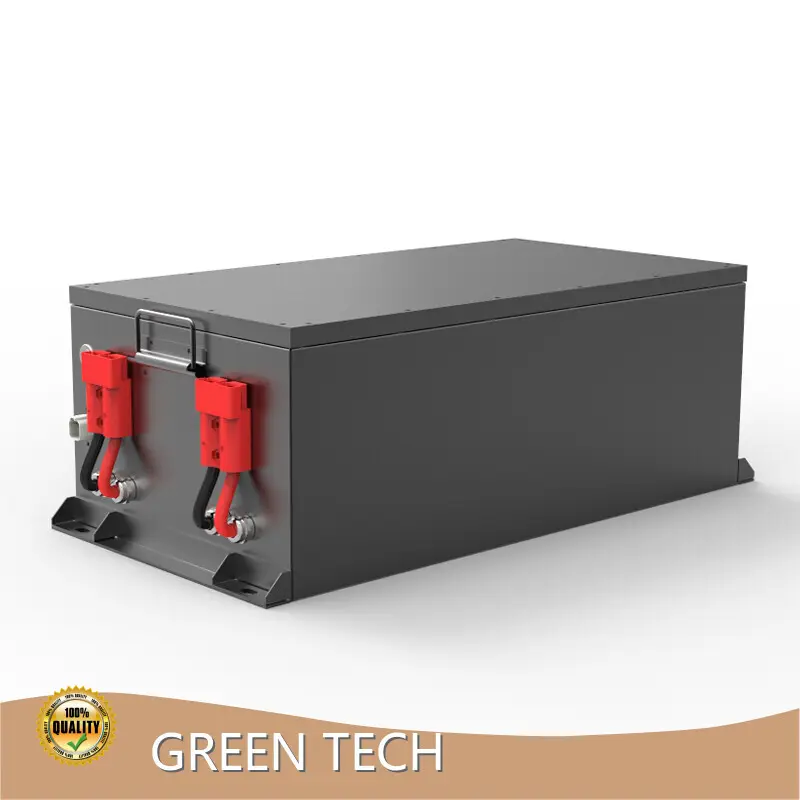

Graphene Battery Electric Car 4.5kWh

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-48V4500-G
Energy storage	4.5kWh
Nominal Voltage	48Vdc
Nominal Capacity	130Ah
Maximum Charge Voltage	58.8Vdc
Discharge Cut-off Voltage	40Vdc
ESR/AC @1KHz 50% SOC	<30mΩ
Max. Continuous Charge Current	200A
Max. Continuous Discharge Current	200A
Absolute Peak Current 3s	400A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	Module voltage,SOC
Indicator light display	Capacity %
Environmental Protection	IP65
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Weight	55kg
Dimensions(WxDxH)	720x355x252(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· graphene battery electric car is manufactured as per the industry norms by using finest material under the oversight of experts.

· As a testament to the great quality, the product is backed by many international quality certificates on a basis of our various performance test and quality assurance test.

· has its great staff to produce superior quality of graphene battery electric car.

Company Features

· has been engaged in the development, manufacture, and distribution of graphene battery electric car. We always focus on providing innovative products.

· The factory has introduced advanced production facilities from Germany, Italy, and other countries. The facilities have been tested to meet international standards. This forms a solid foundation for product quality and offers a guarantee for stable product output.

· Our company is striving for green manufacturing. Materials are carefully chosen to reduce environmental impacts. The manufacturing methods we use allow our products to be disassembled for recycling when they reach the end of their useful life.

Application of the Product

The graphene battery electric car produced by can be used in many fields.

We always focus on meeting customers' needs and we are dedicated to providing customers with comprehensive and excellent solutions.
