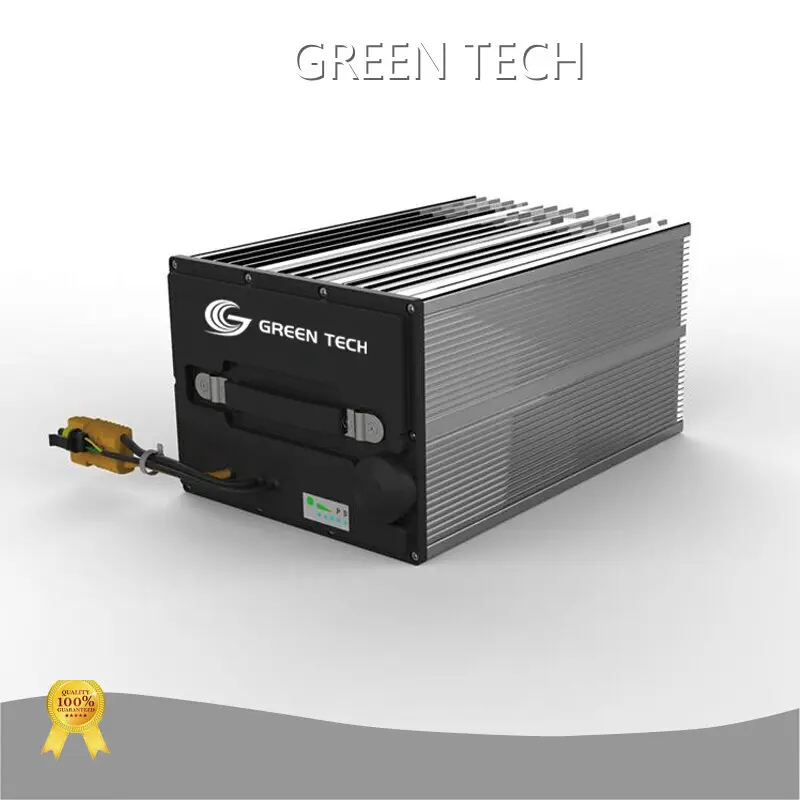

Graphene Battery Electric Car 71.4Vdc Brand 47.6Vdc

Product details of the graphene battery electric car

Product Introduction

graphene battery electric car is designed and assembled in state-of-the-art production plant which meets the latest lean manufacturing and quality standards. The product is highly praised for its strong usability and consistent performance. Rapid development of new products, and rapid delivery of orders, can finally win the market.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-60V1560-M
Energy storage	1560Wh
Nominal Voltage	60Vdc
Maximum Charge Voltage	71.4Vdc
Discharge Cut-off Voltage	47.6Vdc
ESR/AC @1KHz 50% SOC	<30mΩ
Max. Continuous Charge Current	80A
Max. Continuous Discharge Current	80A
Cut-off current (charging)	4A
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	SOC,voltage,current, temperature
Series Connection	Not allowed
Parallel Connection	Recommend within 10sets
Series-Parallel Connection	Not allowed

Weight	20kg
Dimensions(WxDxH)	230x180x360(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet
