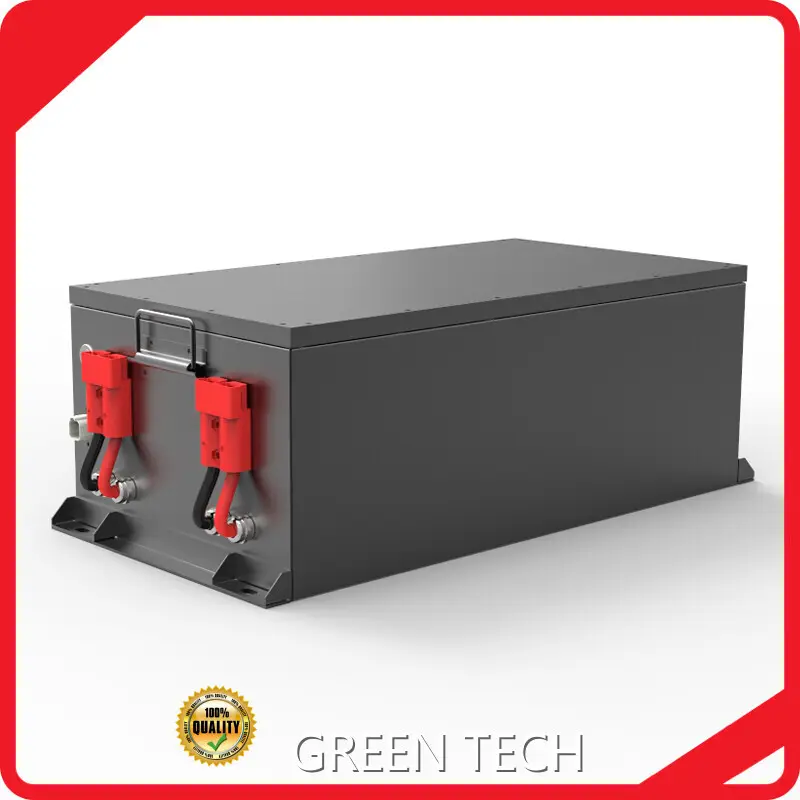

Graphene Battery Ev 200Afactory Price

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-48V4500-G
Energy storage	4.5kWh
Nominal Voltage	48Vdc
Nominal Capacity	130Ah
Maximum Charge Voltage	58.8Vdc
Discharge Cut-off Voltage	40Vdc
ESR/AC @1KHz 50% SOC	<30mΩ
Max. Continuous Charge Current	200A
Max. Continuous Discharge Current	200A
Absolute Peak Current 3s	400A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	Module voltage,SOC
Indicator light display	Capacity %
Environmental Protection	IP65
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Weight	55kg
Dimensions(WxDxH)	720x355x252(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· graphene battery ev is in compliance with international production standards.

· Strict quality control is carried out to ensure product quality and performance in line with industry standards.

· always actively solves customer problems and provide quality services.

Company Features

· is proud to be a pioneer manufacturer for graphene battery ev.

· We have a wide range of testing machines. They are highly sensitive to help us test our products and ensure that we can meet, and in most cases exceed industry standards.

· Our goal is to provide services of the highest quality to our long-term customers. We will actively cooperate with clients in providing solutions and cost benefits.

Application of the Product

Our graphene battery ev is widely used in multiple industries and fields.

always pays attention to customers. According customers' actual needs, we could customize comprehensive and professional solutions for them.
