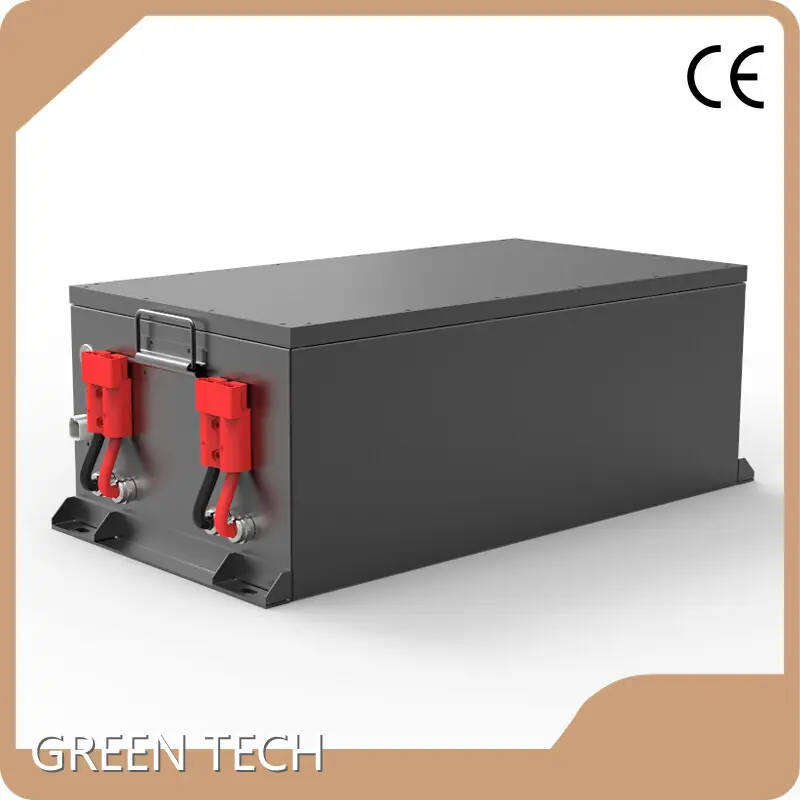

Graphene Battery Ev 58.8Vdc

Company Advantages

· The production process of graphene battery ev has been standardized by using the advanced technology.

· Following the stringent industry standards in the inspection and testing process, the product is sure to be of the highest quality.

· The product is now being used in most countries around the world due to its huge application prospects.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-48V6500-G
Energy storage	6.5kWh
Nominal Voltage	48Vdc
Nominal Capacity	130Ah
Maximum Charge Voltage	58.8Vdc
Discharge Cut-off Voltage	37Vdc
ESR/AC @1KHz 50% SOC	<15mΩ
Max. Continuous Charge Current	200A
Max. Continuous Discharge Current	200A
Absolute Peak Current 3s	300A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle, cell’s voltage
Indicator light display	Capacity %
Environmental Protection	IP65
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Weight	75kg
Dimensions(WxDxH)	940x400x252(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Features

· is an influential company in the industry of graphene battery ev.

· We have a professional sales team that is familiar with products like graphene battery ev and their manufacturing processes, provides quick response and courteous service and saves customers' time.

· To survive in the graphene battery ev market, will never forget that quality is the key point.

Product Details

Next, the details of graphene battery ev are shown for you.
