Company Advantages
· The materials of graphene battery ev are of the highest quality as they have been strictly examined according to our high standard and set the industry standard.
· 100% attention is paid to its performance improvement.
· The growth of sales strongly indicates the wider market application of the product in the future.
|
Parameter |
GT-EST06KH |
GT-EST08KH |
GT-EST10KH |
|
Efficiency |
Max Efficiency |
>98 2% |
>98 2% |
>98 2% |
|
PV Input
|
Max. PV input power(W) |
7800 |
10400 |
13000 |
|
Max. PV input voltage(V) |
1000 |
1000 |
1000 |
||
MPPT Operation Voltage Range (V) |
180-950 |
180-950 |
180-950 |
||
Number of MPPT/PV Strings |
2/1 |
2/1 |
2/1 |
||
Max. PV input current(A) |
15/15 |
15/15 |
15/15 |
||
Short- circuit current of PV input( A) |
18/18 |
18/18 |
18/18 |
||
Battery
|
Max Input/Output Voltage(V) |
550 |
550 |
550 |
|
Operating Voltage Range(V) |
180-550 |
180-550 |
180-550 |
||
Max Charge/Discharge Current(A) |
25/30 |
25/30 |
25/30 |
||
Max Input/Output Power(W) |
6000/6000 |
8000/8000 |
10000/10000 |
||
Battery Type |
Li-ion/Lead-acid |
||||
AC Input and Output
|
Rated Power(W) |
6000 |
8000 |
10000 |
|
Max. Apparent AC Power(VA) |
6000 |
8000 |
10000 |
||
Nominal AC Voltage(Vac) |
380,3L/N/PE |
380,3L/N/PE |
380,3L/N/PE |
||
AC Power Frequency ( Hz) |
50/60 |
50/60 |
50/60 |
||
Max. AC Output Current(A) |
10 |
12 |
15 |
||
Power Factor Range |
~1 (Adjusta |
ble from 0.8 leading |
to 0.8 lagging) |
||
OutputTHDi(@Nominal Output) |
<3% |
<3% |
<3% |
||
Genaral Data |
Operating Temperature |
-25C …+60C(>45C derating) |
|||
Range Topology |
Transformerless |
||||
Cooling Method |
Natural convection |
||||
Ingress Protection Rating |
IP65 |
||||
Relative Humidity |
0-100%, no condensation |
||||
DC Connection Type |
MC/ Amphenol/ Phoenix |
||||
AC Connection Type |
Plug-in Connector |
||||
Display |
LCD |
||||
Communication With Portal |
RS485 (WiFi/GPRS Optinal) |
||||
Communication With BMS |
CAN |
||||
Communication With Meter |
RS485 |
||||
Certification |
Safety |
IEC62109-1/-2 |
|||
EMC |
EN61000-6-1/-2/-3,IEC61000 |
||||
On- Grid standard |
AS4777.2:2020 ,NRS097-2-1:2017 ,PN-EN50549-1:2019,VDE-AR-N 4105:2018,EN50549-1:2019+AC:2019-4 |

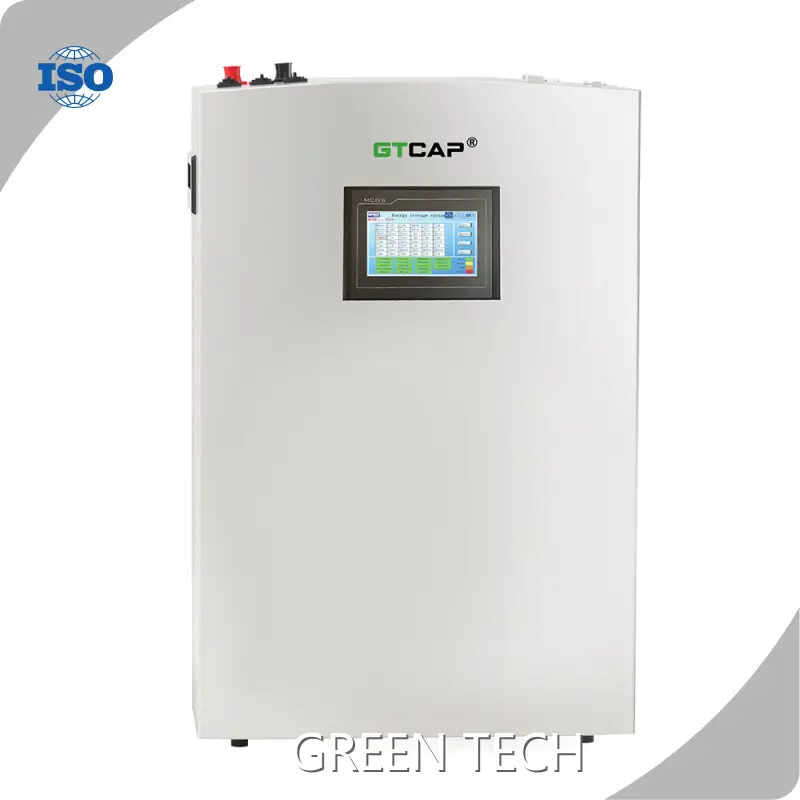

Part Number |
GTEM-400V14.4K-W |
GTEF-345V10K-W |
Energy storage |
14.4kWh |
10.3kWh |
Nominal Voltage |
400V/DC |
345.6V/DC |
Maximum Charge Voltage |
453V/DC |
390V/DC |
Discharge Cut-off Voltage |
292V/DC |
300V/DC |
ESR/AC @1KHz 50% SOC |
<150mΩ 50A |
<100mΩ 15A |
Max. Continuous Charge Current |
50A |
15A |
Max. Continuous Discharge Current |
50A |
30A |
Round Trip Efficiency |
96% |
97.7% |
Charge Temperature |
0 C~ + 5 5 C |
0 C~ + 4 5 C |
Discharge Temperature |
-20C~+60C |
-30C~+60C |
Self- discharge Rate |
2% per month |
2% per month |
Recommended Depth of Discharge |
≤90% |
≤90% |
Maximum Depth of Discharge |
100% |
100% |
Cooling Method |
Natural |
Natural |
Mounting Options |
Wall/floor |
Wall/floor |
Shell Material |
Metal & ABS plastic |
Metal & ABS plastic |
Communication |
CANbus |
CAN,RS485 |
Monitoring Data |
System voltage,current,temperature,SOC,SOH,cycle,cell’s voltage |
|
Compliance Information |
|
|
Certificate Options |
IEC62619:2017,IEC62040, EN 62133:2013, EN 55032:2015+AC:2016, EN 55035:2017,EN 61000-3-2:2014, EN 61000-3-3:2013, RoHS, UN38.3, MSDS |
Module type |
|
|
YLxxxDF54e/2(xxx=Pmax) |
|||||
Power output |
Pmax |
W |
390 |
395 |
400 |
405 |
410 |
415 |
Power output tolerances |
△Pmax |
W |
0/+5 | |||||
Module efficiency |
ηm |
% |
19.97 |
20.23 |
20.48 |
20.74 |
21.00 |
21.25 |
Voltage at Pmax |
Vmpp |
V |
30.27 | 30.42 | 30.56 | 30.71 | 30.86 | 31.00 |
Current at Pmax |
Impp |
A |
12.89 | 12.99 | 13.09 | 13.19 | 13.29 | 13.39 |
Open-circuit voltage |
Vac |
V |
36.80 |
36.90 |
37.00 |
37.10 |
37.20 |
37.30 |
Short-circuit voltage |
Isc |
A |
13.68 |
13.77 |
13.86 |
13.95 |
14.04 |
14.13 |
*STC:1000W.m-2 irradiance,25℃ cell temperature,AM 1.5 spectrum according to EN 608904-3
Power output |
ηm |
% |
296.85 |
300.63 |
304.34 |
308.17 |
312.03 |
315.80 |
Voltage at Pmax |
Vmpp |
V |
28.87 |
29.01 |
29.01 |
29.14 |
29.43 |
29.56 |
Current at Pmax |
Impp |
A |
10.28 |
10.36 |
10.44 |
10.52 |
10.60 |
10.68 |
Open- circuit voltage |
Voc |
V |
34.98 |
35.08 |
35.17 |
35.27 |
35.36 |
35.46 |
Short- circuit voltage |
Isc |
A |
11.02 |
11.09 |
11.17 |
11.24 |
11.31 |
11.38 |
*NOCT:open-circuit module operation temperature at 800W.m-2 irradiance,20℃ ambient temperature,1m*s-1 wind speed.
Power output |
Pmax |
% |
426.86 |
432.33 |
437.80 |
443.27 |
448.75 |
454.22 |
Voltage at Pmax |
Vmpp |
V |
30.27 |
30.42 |
30.56 |
30.71 |
30.86 |
31.00 |
Current at Pmax |
Impp |
A |
14.10 |
14.21 |
14.33 |
14.43 |
14.54 |
14.65 |
Open- circuit voltage |
Voc |
V |
36.80 |
36.90 |
37.00 |
37.10 |
37.20 |
37.30 |
Short- circuit voltage |
Isc |
A |
14.97 |
15.07 |
15.17 |
15.27 |
15.37 |
15.47 |
*Bifaciality coefficient is 70% ±5%,rear irradiance is 135W.m-2
Nominal operating cell temperature |
NOCT |
C |
39±2 |
Temperature coefficient of Pmax |
γ |
% / C |
-0.35 |
Temperature coefficient of Voc |
β |
% / C |
-0.28 0.05 |
*Bifaciality coefficient is 70% ±5%,rear irradiance is 135W.m-2
Compatible Protocol: CAN, RS485
Company Features
· specializes in offering quality graphene battery ev to ensure that your company is one step ahead of the competition.
· We have a dedicated after-sales service team. They can efficiently deal with cargo delivery, invoicing, settlement, transportation and cargo storage. They help the company guarantee timely delivery. Our company has well-trained workers. They have a diverse skill set with a wide base of skills that they can apply to a particular task. We have experienced and highly-skilled workers. They have a better understanding of the graphene battery ev industry. And this strong professionalism is closely linked to the increased productivity of our company.
· Service is our culture, is committed to improving our service. Please contact.
Enterprise Advantages
Our company is rich in talents, and has gathered a group of professional talents. They have excellent performance in R&D, technology, marketing and management.
Our company has a professional customer service center for customers' orders, complaints, consultation and other services.
always adheres to the enterprise spirit, to be rigorous, responsible and efficient. We actively open up new markets and increase market share. We are committed to providing customers with high-quality products and services.
Since the establishment in our company has had a production history of years. Now, our production technology and experience are at the leading level in the industry.
Our company actively explores product sales channels and establishes a sound marketing network. Our products are not only sold to many provinces and cities in China, but also exported to East Asia and South Asia.
