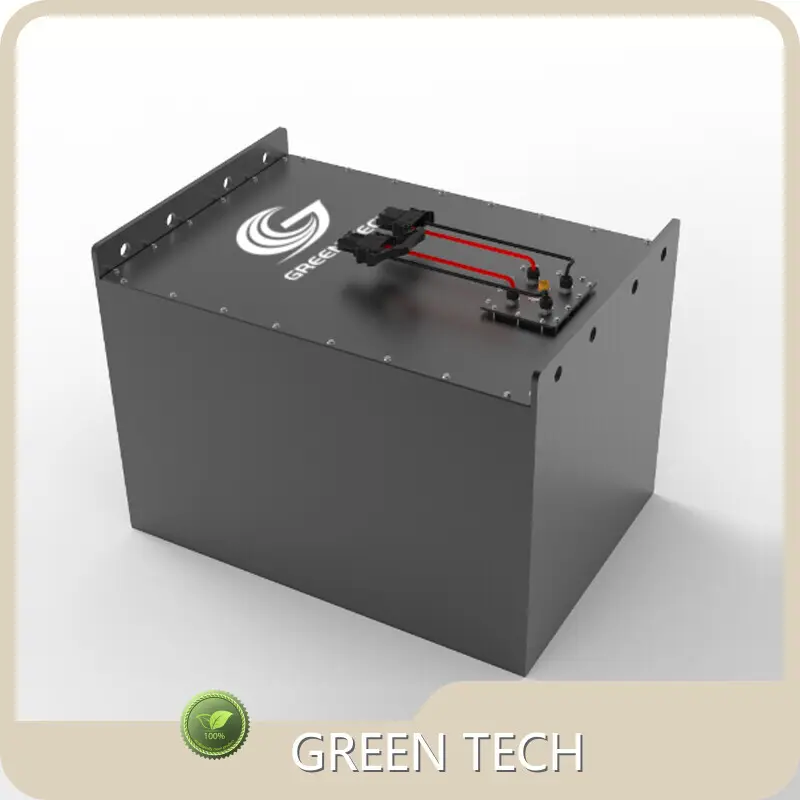

Graphene Battery for Ev 740x540x320mm 18.72kWhvendor

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-72V18720-F
Energy storage	18.72kWh
Nominal Voltage	72Vdc
Maximum Charge Voltage	84Vdc
Discharge Cut-off Voltage	56Vdc
ESR/AC @1KHz 50% SOC	<50mΩ
Max. Continuous Charge Current	150A
Max. Continuous Discharge Current	150A
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Charge Temperature	0℃~+55℃
Discharge Temperature	-20℃~+60℃
Cooling Method	Natural
Shell Material	Metal & ABS plastic
Parallel Connection	Recommend within 10sets
Monitoring Data	SOC,voltage, module

Weight	230kg
Dimensions(WxDxH)	740x540x320(mm)
Mount Options	Wall / floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· The production of graphene battery for ev is in compliance with the industry defined norms and guidelines.

· It is checked for its specifications, dimensions, weight, and measurements to ensure the quality.

· is constantly striving to provide quality services to the public.

Company Features

· is renowned for the strong capacities of designing, producing, and marketing graphene battery for ev. We are widely believed in the industry.

· The factory has implemented a strict production control system for years. This system stipulates requirements for workmanship, energy resources utilization, and waste treatment, which enables the factory to regulate all of the production processes.

· The vision of is to become a leader in products and services in the graphene battery for ev industry. Call now!

Application of the Product

graphene battery for ev, one of main products, is deeply favored by customers. With wide application, it can be applied to different industries and fields.

always focuses on meeting customers' needs. We are dedicated to providing customers with comprehensive and quality solutions.
