Company Advantages

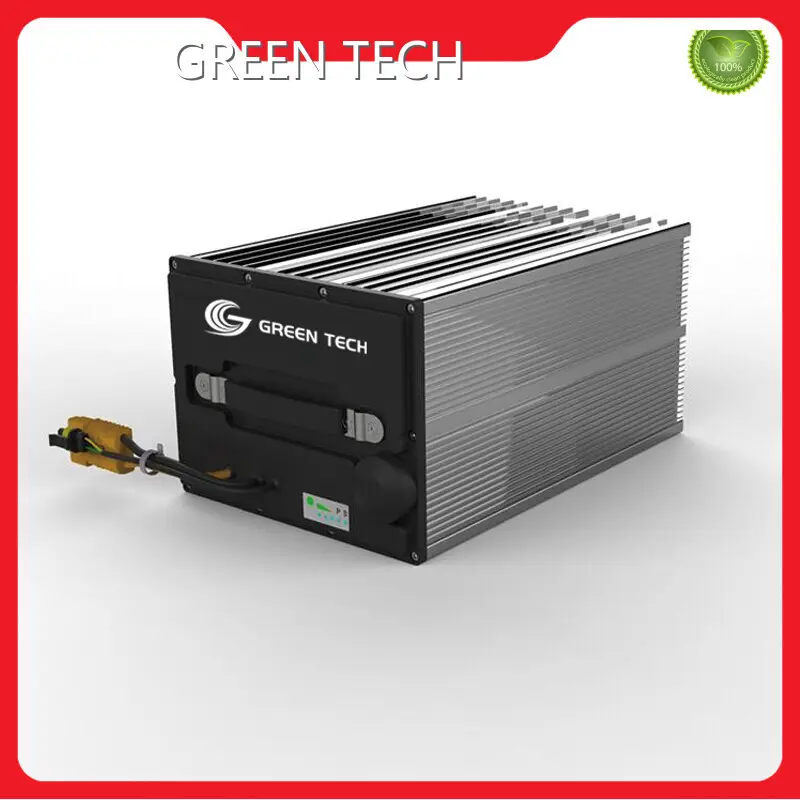

· graphene battery for ev is manufactured using the optimum quality raw material and advanced technology.
· The fully trained and qualified QC team is responsible for the quality of this product.
· It is promoted in the field due to strong applicability.
Part Number |
GTEM-48V1920-M |
1920Wh |
|
Nominal Voltage |
48Vdc |
Maximum Charge Voltage |
58.8Vdc |
Discharge Cut-off Voltage |
42Vdc |
ESR/AC @1KHz 50% SOC |
<10mΩ |
Max. Continuous Charge Current |
80A |
Max. Continuous Discharge Current |
80A |
Cut-off current (charging) |
4A |
Cells Self-discharge Rate |
2% per month |
Projected Cycle Life ( 25℃) |
20,000 times |
Recommended Depth of Discharge |
≤90% |
Maximum Depth of Discharge |
100% |
Shell Material |
Metal & ABS plastic |
Monitoring Data |
SOC,voltage,current, temperature |
Series Connection |
Not allowed |
Parallel Connection |
Recommend within 10sets |
Series-Parallel Connection |
Not allowed |
Weight |
22kg |
Dimensions(WxDxH) |
230x180x430(mm) |
Mount Options |
On floor |
Compatible Protocol: CAN, RS485
Company Features
· is more and more mature in the development and operation of graphene battery for ev.
· Compared with other companies, has a higher and more advanced technical level. After years of development, has successfully established a solid technical base. By using advanced technology, has improved the not only the quality of graphene battery for ev but also its output.
· We abide by environmentally friendly operating procedures. We properly maintain production, pollution control, and waste disposal processes that could have a significant impact on the environment.
Product Details
Our company pursues superior quality. In the production process, we are dedicated to creating perfection in every detail.
Product Comparison
Compared with products in the industry, graphene battery for ev has the outstanding advantages which are mainly reflected in the following aspects.
Enterprise Advantages
has an R&D team composed of senior technicians and engineers in the industry to focus on product design and development with the concept of 'quality first, technological innovation, novel design'.
Our company has established and improved a relatively complete service management system. The professional one-stop services provided by us include product consultation, technical service and after-sales service.
Based on honesty, pursues excellence and seeks steady development. Under the guidance of enterprise spirit, we intend to be responsible, truth-seeking and aggressive. We continuously improve our core competitiveness and maintain close and friendly relationships with customers. Our aim is to become a first-class company that makes employees proud and is trusted by the public.
was founded in Over the years, our company has always insisted on independent innovation to maintain vigorous development. And now we are a leading company in the industry.
Apart from the sales in major cities in China, our company's products are also exported to Southeast Asia, Europe, America, Europe and other countries and regions.
Welcome, Shanghai Green Tech (GTCAP) is a supercapacitor battery manufacturer and energy storage solutions provider,
offering OEM, ODM and customized energy storage solutions for customers.
