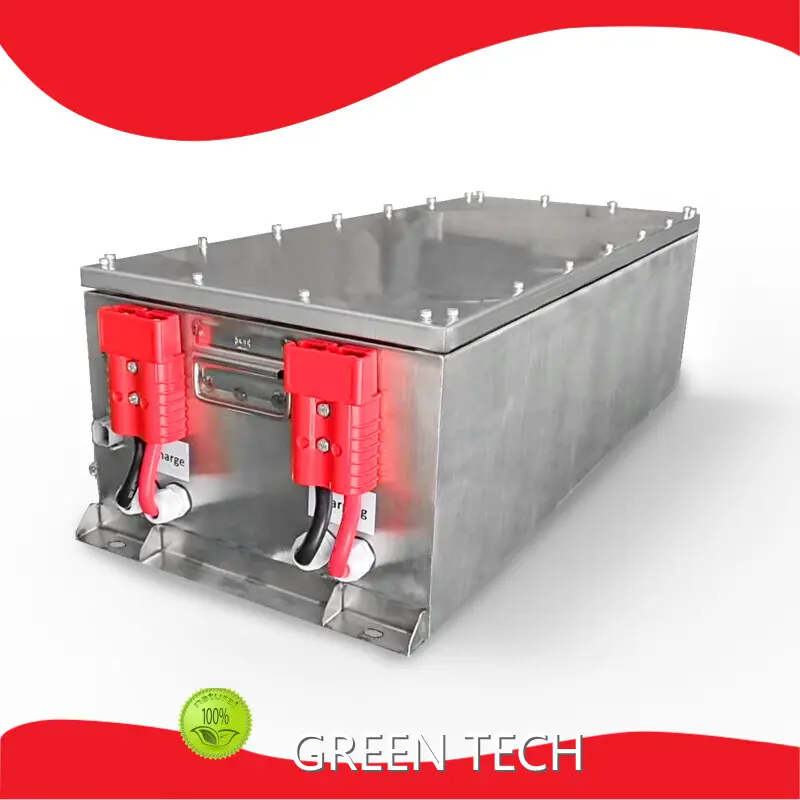

Graphene Battery for Ev 810x550x500mm Brand 109.2Vdc

Product details of the graphene battery for ev

Product Introduction

The cost-saving design phase of graphene battery for ev reduces the production costs. The product is highly acclaimed among customers for high durability and high cost performance. Our graphene battery for ev has many successful cases when cooperating with famous companies.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-96V20k-B
Energy storage	20kWh
Nominal Voltage	96Vdc
Nominal Capacity	210Ah
Maximum Charge Voltage	109.2Vdc
Discharge Cut-off Voltage	78Vdc
ESR/AC @1KHz 50% SOC	<150mΩ
Max. Continuous Charge Current	100A
Max. Continuous Discharge Current	500A
Absolute Peak Current 10s	600A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle, cell’s voltage
Indicator light display	Capacity %
Environmental Protection	IP67
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Weight	190kg
Dimensions(WxDxH)	810x550x500(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485
