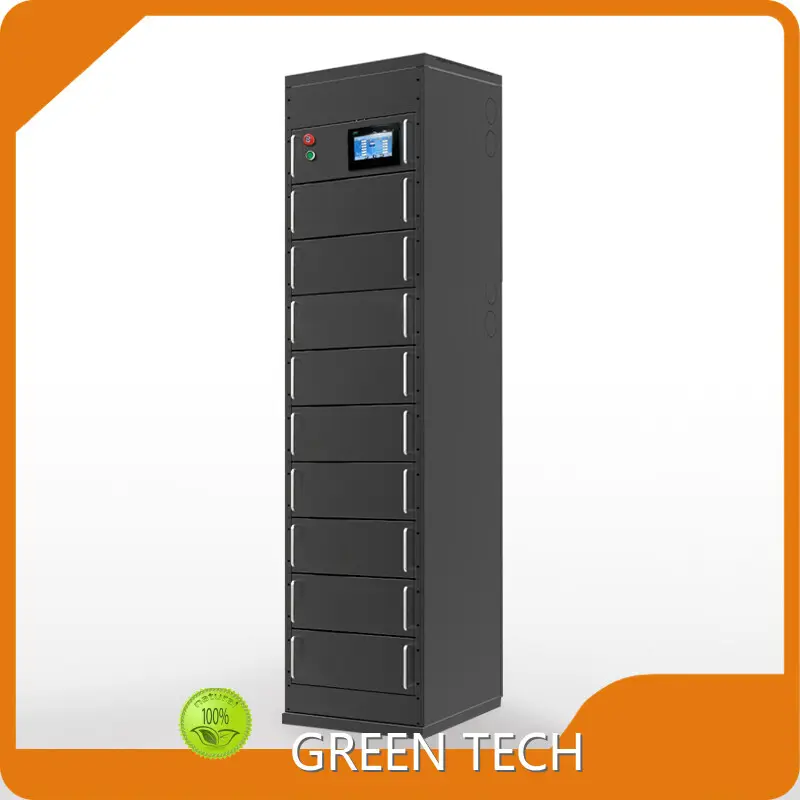

The production of graphene battery for ev is carried out according to industry production standard. The product meets stringent quality and regulatory requirements. This product has a large assortment of applications that it is suitable for.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEG-700V39K-R
Energy storage	39.4kWh
Nominal Voltage	703.8Vdc
Maximum Charge Voltage	856.8Vdc
Discharge Cut-off Voltage	642.6Vdc
ESR/AC @1KHz 50% SOC	<100mΩ
Max. Continuous Charge Current	280A
Max. Continuous Discharge Current	280A
Discharge rate	5C
Max. Continuous Output Power	196kW
*Charge Temperature1**	-20℃~+60℃
*Discharge Temperature2**	-40℃~+60℃
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	50,000 times
Recommended Depth of Discharge	≤ 90%
Maximum Depth of Discharge	100%
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage
Terminal	Large power energy storage terminals
Environmental Protection	Indoor
Cooling Method	Liquid cooling ( cycle frequently )
Shell Material	Metal
Parallel Connection	No limited ( add controller box )
communication	CAN, RS485

Weight	580kg
Dimensions(WxDxH)	560x700x1804(mm)
Mount Options	On floor

Certificate

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Feature

• is located in a beautiful place with traffic convenience.
• Our company strives to open up domestic and international markets. And our products are distributed in various countries and regions around the world, which are recognized by consumers.
• Since founded in has gradually become the leader in the field of with experience of years.
If you have any needs for custom service, please leave your contact information. will get back to you as soon as possible.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
