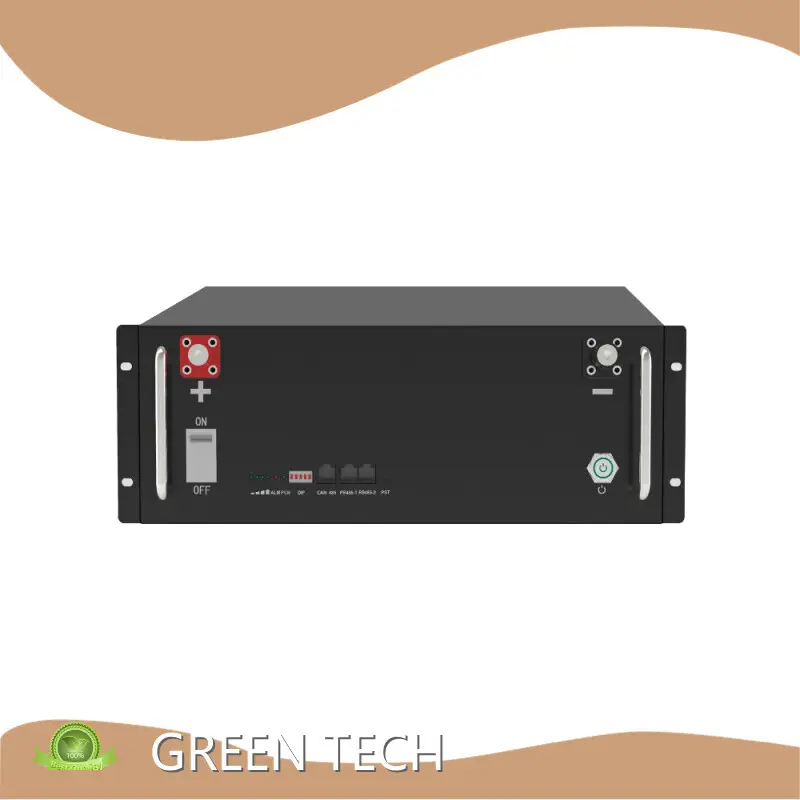

Product details of the graphene battery for ev
Product Information
All materials of graphene battery for ev have been subjected to intense control to ensure that they have the proper properties. The quality of the product is greatly guaranteed by our state-of-the-art equipment and skilled production and QC teams. The product is highly appreciated and consistently meets the needs of the customers.
Part Number |
GTEF-48V4500-E |
4.71kWh |
|
Capacity |
92Ah |
Nominal Voltage |
51.2Vdc |
Maximum Charge Voltage |
57.6Vdc |
Discharge Cut-off Voltage |
44.8Vdc |
ESR/AC @1KHz 50% SOC |
<20mΩ |
Max. Continuous Charge Current |
50A |
Max. Continuous Discharge Current |
50A |
Communication |
CAN, RS485 |
Monitoring Data |
System,voltage,current, temperature,SOC,SOH,cells’ voltage |
Protection & Alarms |
Over charge,over current,over temperature,over discharge |
Anti-theft |
Intelligent software lock; GPS, displacement lock,buzzer alarm |
Projected Cycle Life ( 25℃) |
6,000 times |
Recommended Depth of Discharge |
≤95% |
Maximum Depth of Discharge |
95% |
Shell Material |
Metal & ABS plastic |
Cooling Method |
Natural |
Series Connection |
Not allowed |
Parallel Connection |
Up to 16sets (need to clarify when place order) |
Series and Parallel Connection |
Add controller box (need to clarify when place order) |
Weight |
38kg |
Dimensions(WxDxH) |
486x590x133.3(mm) |
Mount Options |
Standard 19” rack mounted |
