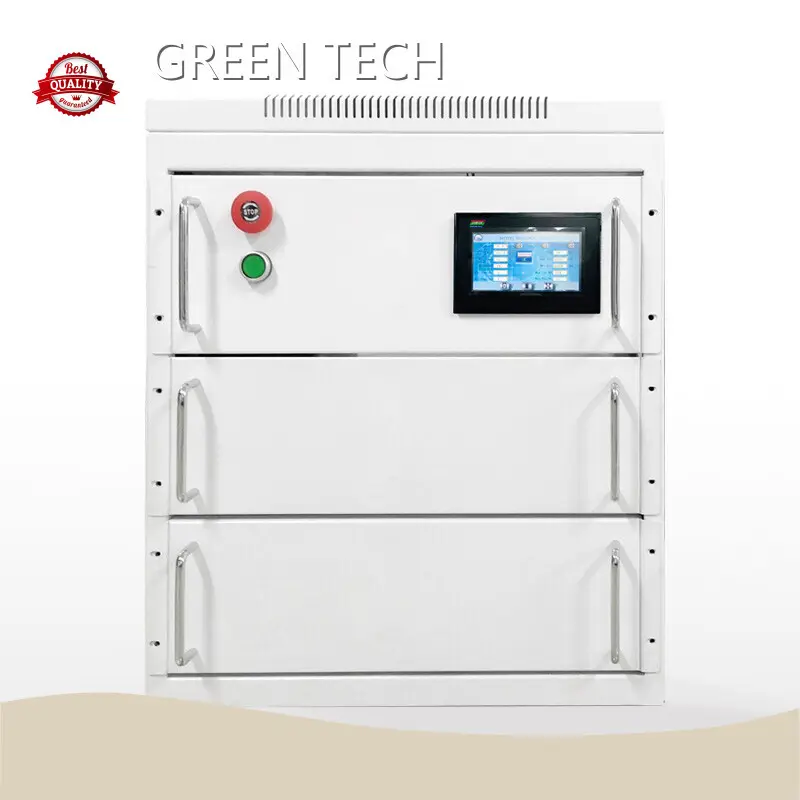

Graphene Battery Technology 165kg±5kg

Company Advantages

· graphene battery technology is designed in accorance with the basic production standard.

· The product is inspected to industry standards to eliminate all defects.

· After years of experience in producing graphene battery technology, is skilled in this field.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-400V14.4K-R
Energy storage	14.4kWh
Nominal Voltage	400Vdc
Maximum Charge Voltage	453.6Vdc
Discharge Cut-off Voltage	291.6Vdc
ESR/AC @1KHz 50% SOC	<200mΩ
Max. Continuous Charge Current	30A
Max. Continuous Discharge Current	30A
Round Trip Efficiency*1	96%
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Cooling Method	Natural
Shell Material	Metal & ABS plastic
Monitoring Data	System voltage,current, temperature, SOC,SOH,cycle,cell’s voltage
Parallel connection optional	Up to 4sets (400V 60KWh)
Communication	CAN, RS485

Weight	165kg±5kg
Dimensions(WxDxH)	520x732x653(mm)
Mount Options	On floor

Certificate Options

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Features

· is the worldwide leading provider for graphene battery technology and it has been around in the China market for decades of years.

· has gained fruitful technology achievements with the help of solid technical foundation. Solid technical foundation is the key for to greatly improve quality of graphene battery technology.

· abides by the tenet of quality first, customers foremost to strive forward for our growth. Please contact us!

Application of the Product

graphene battery technology can play a role in various industries.

With professional service spirit, always provides customers with reasonable and efficient one-stop solutions.

Product Comparison

Compared with similar products, our company's graphene battery technology has the following outstanding features.

Enterprise Advantages

We have the professional research and development team and experienced technical personnel, which provides a powerful force for the production of high quality products.

Our company adheres to the service principle of 'honest and trustworthy, quality first'. Our goal is to create high-quality services to meet customers' different needs.

Based on the development concept of 'scientific management, pursuit of excellence', our company creates value for customers with sincerity, seeks development for ourselves, and brings wealth for the society. During the process, we try hard to practice the core value of 'honour, dedication, honesty, and pragmatism'.

was founded in After the development of years, we have become a leader in the industry.

sales network continues to expand in China. The products are also exported to Central Asia, Eastern Europe, Northern Europe, and other regions.
