Graphene Battery Technology 200A Company

Company Advantages

· Each graphene battery technology is tailored to your needs in accordance with environmentally friendly manufacturing practices.

· The product has stable performance, good usability, and reliable quality, which has been approved by the authoritative third party.

· welcome customized service for graphene battery technology.

Product Parameters

General Characteristics

Mechanical Specifications

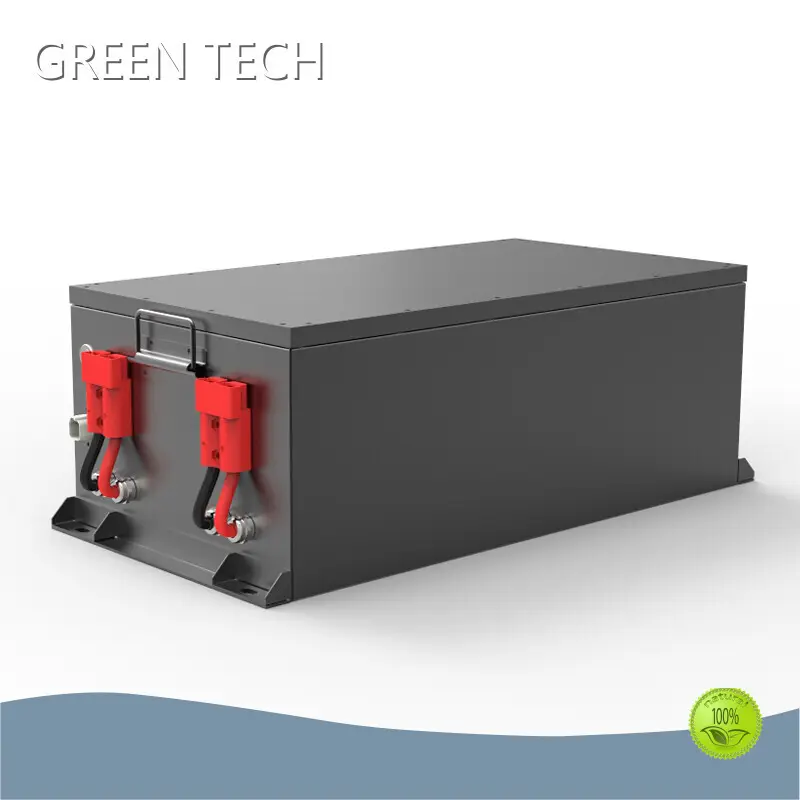

Part Number	GTEM-48V4500-G
Energy storage	4.5kWh
Nominal Voltage	48Vdc
Nominal Capacity	130Ah
Maximum Charge Voltage	58.8Vdc
Discharge Cut-off Voltage	40Vdc
ESR/AC @1KHz 50% SOC	<30mΩ
Max. Continuous Charge Current	200A
Max. Continuous Discharge Current	200A
Absolute Peak Current 3s	400A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	Module voltage,SOC
Indicator light display	Capacity %
Environmental Protection	IP65
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Weight	55kg
Dimensions(WxDxH)	720x355x252(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Features

· Since establishment, has provided superior design and production of graphene battery technology. We are recognized as one of the leaders in the industry.

· As a well-developed graphene battery technology supplier, introduces high-end technology for production.

· Enterprise culture is highly significant to for long-term development. Check now!

Product Details

adheres to the principle of 'details determine success or failure' and pays great attention to the details of graphene battery technology.

Application of the Product

The graphene battery technology developed by is widely used in various fields.

is dedicated to providing professional, efficient and economical solutions for customers, so as to meet customers' needs to the greatest extent.

Product Comparison

Compared with other products in the same category, graphene battery technology has more advantages, specifically in the following aspects.
