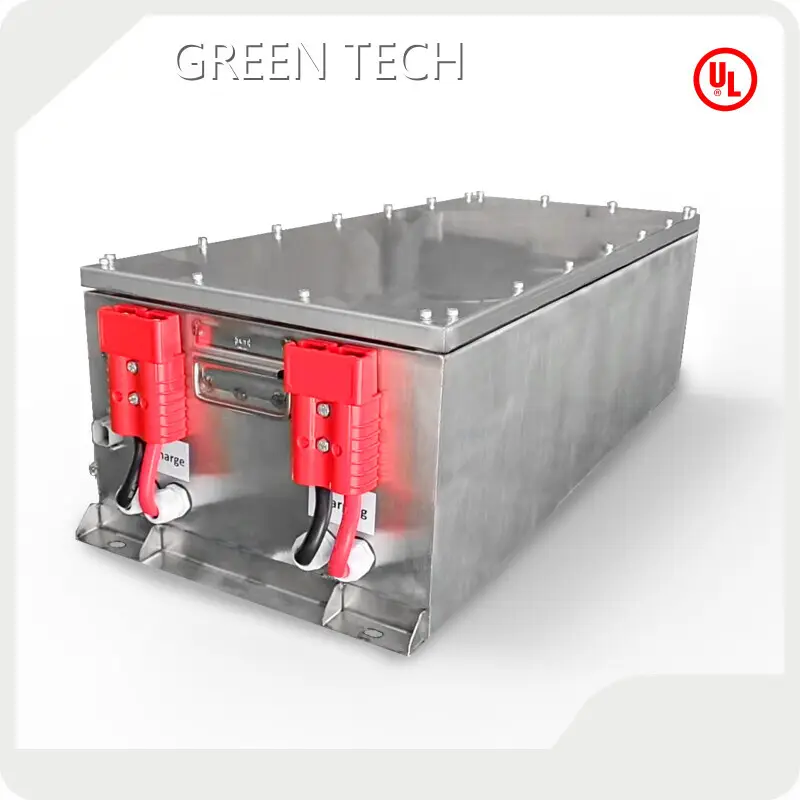

Graphene Battery Technology Inquire now for Sea WaterGTEM-48V10K-B 1
Graphene Battery Technology Inquire now for Sea WaterGTEM-48V10K-B 2
Graphene Battery Technology Inquire now for Sea WaterGTEM-48V10K-B 1
Graphene Battery Technology Inquire now for Sea WaterGTEM-48V10K-B 2

Graphene Battery Technology Inquire now for Sea WaterGTEM-48V10K-B

Part Number:
GTEM-48V10K-B
Nominal Voltage:
51.8Vdc
Max. Continuous Discharge Current:
200A
Energy storage:
10kWh
Dimensions(WxDxH):
865x355x260mm
Inquiry

Product details of the graphene battery technology


Quick Overview

graphene battery technology is designed adopting the most advanced technology. Under the strict supervision of quality experts, 100% of the products have passed the conformance test. graphene battery technology can be applied to different fields. Quality feedback collecting will made to improve quality accordingly for graphene battery technology.


Product Information

Next, will show you graphene battery technology's details.

Product Parameters
General Characteristics
Mechanical Specifications

Part Number

GTEM-48V10k-B

Energy storage

10kWh

Nominal Voltage

51.8Vdc

Nominal Capacity

210Ah

Maximum Charge Voltage

58Vdc

Discharge Cut-off Voltage

40Vdc

ESR/AC @1KHz 50% SOC

<15mΩ

Max. Continuous Charge Current

200A

Max. Continuous Discharge Current

200A

Absolute Peak Current 3s

300A

Discharge Temperature

-20℃~+60℃

Charge Temperature

0℃~+55℃

Cooling Method

Natural cooling

Operating Humidity

0~90% RH Non-condensing

Cells Self-discharge Rate

2% per month

Recommended Depth of Discharge

≤90%

Maximum Depth of Discharge

100%

Shell Material

Stainless steel

Monitoring Data

System voltage,current, temperature,SOC,SOH,cycle,

cell’s voltage

Indicator light display

Capacity %

Environmental Protection

IP65

Storage Conditions

-20℃~+40℃

25% ~ 95%RH

SOC>30%,one full charge needed per two months

Weight

82kg

Dimensions(WxDxH)

1124x400x256(mm)

Mount Options

On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485
