Our beautifully-manufactured graphene battery technology is available in various design styles. Each product undergoes strict inspection before delivery. Due to its significant economic return, the product is becoming more and more important and widely used.

Product Parameters

General Characteristics

Mechanical Specifications

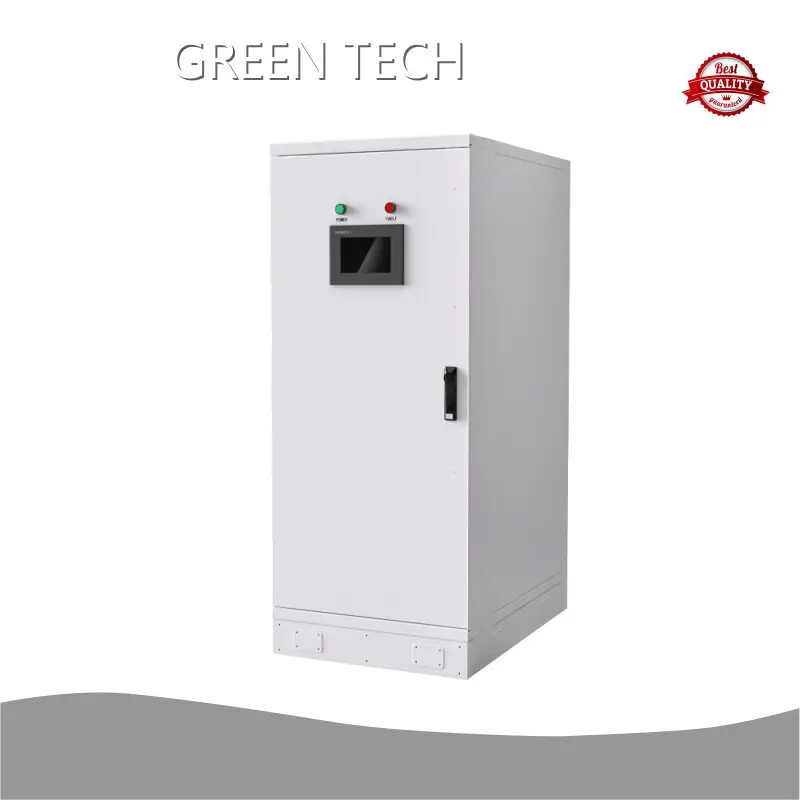

Part Number	GTEM-800V96KW-57KWH-R
Energy storage	57.5kWh
Nominal Voltage	799.2Vd.c
Maximum Charge Voltage	896.4Vd.c
Discharge Cut-off Voltage	648Vd.c
ESR/AC @1KHz 50% SOC	<70mΩ
Max. Continuous Charge Current	80A
Max. Continuous Discharge Current	120A
Cooling Method	Natural
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal
Monitoring Data	System voltage,current, temperature,SOC,SOH,cell’s voltage
Parallel Connection	Up to 16 parallel connections allowed
Storage Conditions	-20℃~+40℃ 25%~95%RH SOC>30%, one full charge needed per two months

Weight	550kg
Dimensions(WxDxH)	600x870x1450（mm）

Certificate&Compatible Protocol

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Advantage

• has a great geographical location with quite a few railways and highways nearby, which provides convenience for transportation.
• has a nationwide sales network. Some products are exported to some countries and regions in Asia, Europe, Latin America, and Africa. This greatly improves the corporate influence in the industry.
• was built in Based on the years of constant exploration, we have gradually grown into a modern enterprise with large scale and mature technology.
quality are made with good workmanship. If you have any needs, please contact us quickly. We warmly invite customers from all walks of life to inquire and cooperate with us.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
