Graphene Car Battery 100A Company

Product details of the graphene car battery

Quick Overview

graphene car battery is manufactured by using world class raw material and latest technology as per the international standards. The product meets standards in terms of quality and performance. The product, competitively priced, is popular in the market and has huge market potential.

Product Description

graphene car battery produced by stands out among many products in the same category. And the specific advantages are as follows.

Product Parameters

General Characteristics

Mechanical Specifications

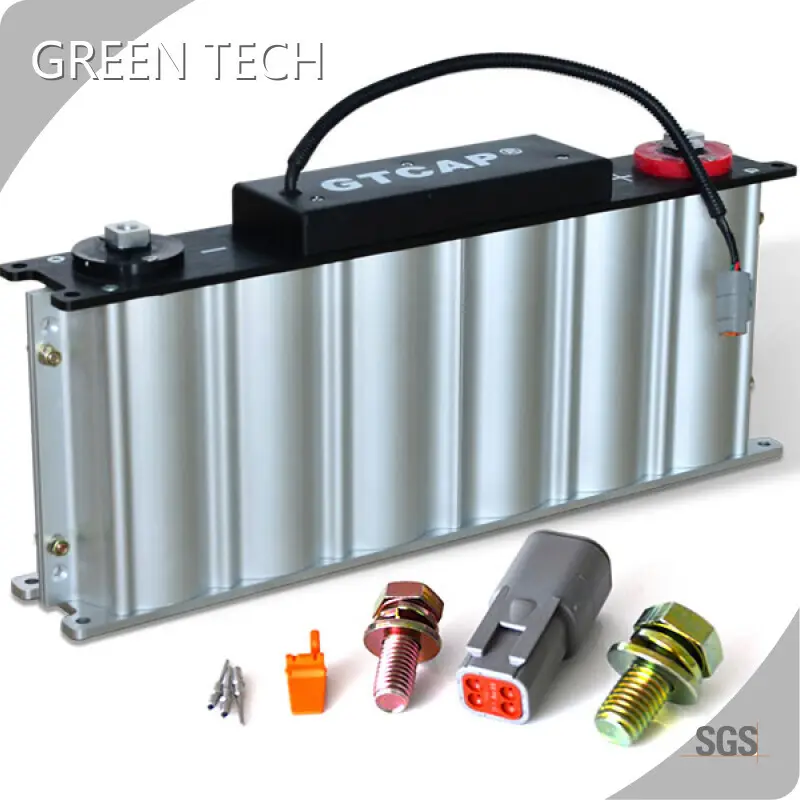

Part Number	GTSM-16V-500FUS
Nominal capacitance	500 F
Capacitance tolerance	+20% / -0%
Rated voltage	16V
Maximum absolute voltage	17V
Maximum series voltage	750V
ESR, DC	1.8mΩ
Maximum continuous current (ΔT=40℃)	100 A
Maximum peak current, 1 sec.	2,275 A
Maximum leakage current (after 72hrs @ 25℃)	5.2 mA
Operating temperature range(Cell case temperature)	-40℃ to +65℃
Storage temperature range(Storage uncharged)	-40℃ to +70℃
Power terminals	M8/M10
Recommended torque - terminal	20/30 Nm
Vibration specification	GB-T 11287-2000
Shock specification	GBT 14537-1993
Environmental protection	IP65

Weight	5.7 kg
Internal temperature sensor	NTC Thermistor
Cell voltage monitoring	Overvoltage Alarm
Usable power density (Pd)	3,590 W/kg

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Introduction

is a self-produced and self-marketing company, with as the main products. Our company persists in the basic principle of 'people-oriented and quality first', always takes 'keeping natural, nutritious and healthy' as the responsibility, and pursues the enterprise spirit of 'creating perfect products and contributing to society'. We make effort to provide healthy products for consumers and strives to become a first-class enterprise in China. A group of production experts is introduced to provide effective guidance and suggestions for the production of quality products. They are knowledgeable, professional and dedicated. has been engaged in the production of for many years and has accumulated rich industry experience. We have the ability to provide comprehensive and quality solutions according to actual situations and needs of different customers.
We sincerely welcome people from all walks of life to come to make cooperation, common development and a better future.
