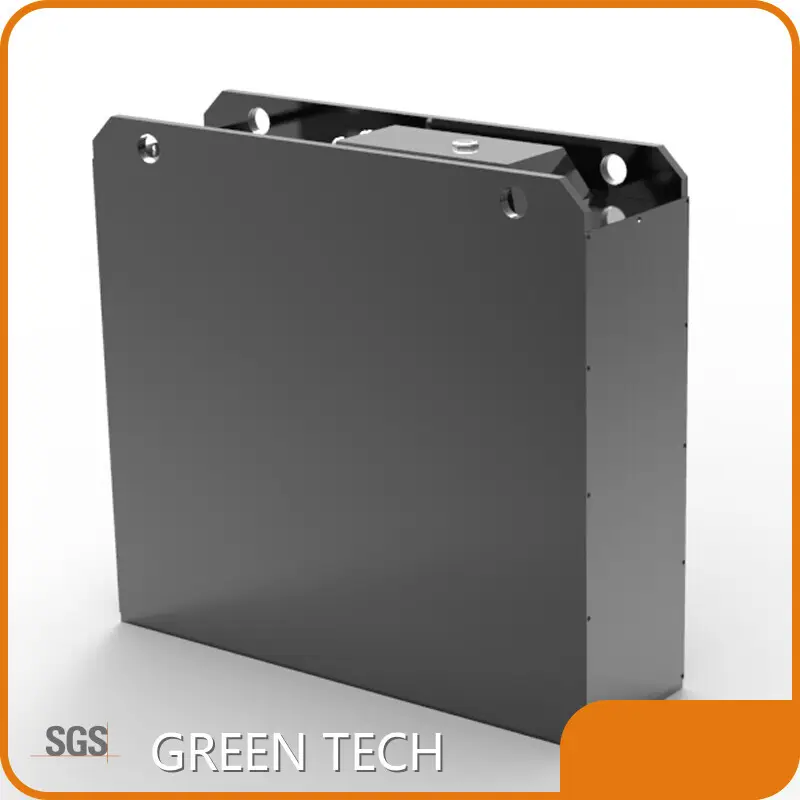

Graphene Car Battery 23Vdc

Product details of the graphene car battery

Product Overview

graphene car battery is designed with a trendy and aesthetically-appealing look. The product is totally examined in line with industry standards to ensure its quality. graphene car battery of can be used in different industries to meet the needs of customers in different fields. 'First-class quality, low prices, rapid delivery' is purpose.

Product Introduction

Supported by advanced technology, our graphene car battery has a greater breakthrough in the comprehensive competitiveness of the products, as shown in the following aspects.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEG-23V4180-F
Energy storage	4.18kWh
Nominal Capacity	182Ah
Nominal Voltage	23Vdc
Absolute Maximum Voltage	28Vdc
Cut-off Voltage (discharging)	18Vdc
Configuration	10S13P
Pack resistance	< 10 mΩ
Continuous Charge Current	150A
Continuous Discharge Current	150A
Peak Discharge Current	300A
Recommended Depth of Discharge	90%
Maximum Depth of Discharge	100%
Cooling	Natural cooling
Ingress Protection	IP55
Storage Humidity	25% ~ 95%RH
Operating Humidity	0 – 90% RH
Storage Temperature	-20℃~40 ℃

Weight	225kg
Dimensions(WxDxH)	650*195*600mm
Mount Options	Wall/ floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet
