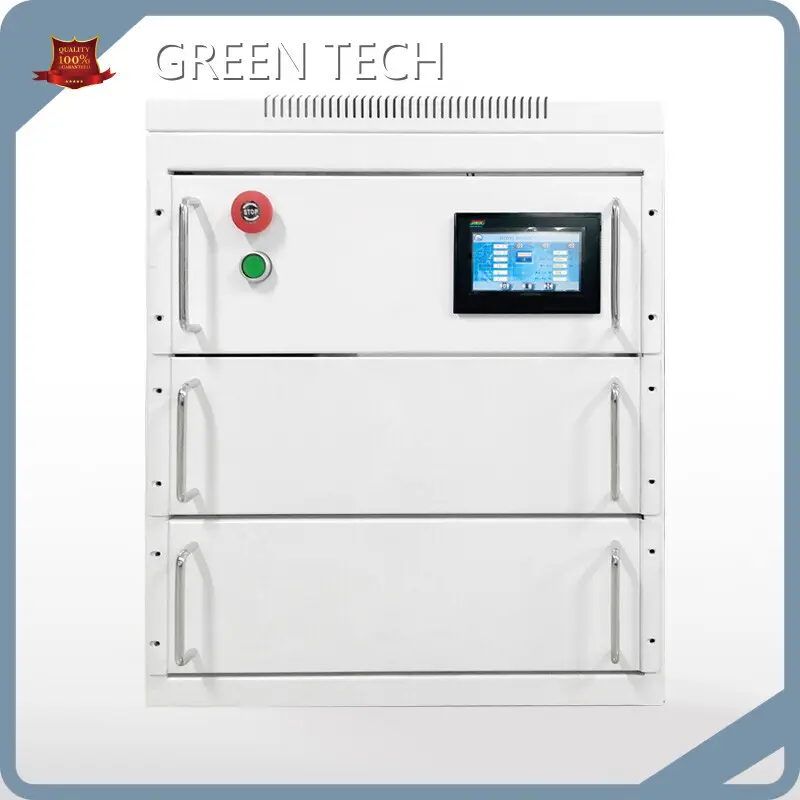

Graphene Car Battery Company - 520x732x653(mm)

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-400V14.4K-R
Energy storage	14.4kWh
Nominal Voltage	400Vdc
Maximum Charge Voltage	453.6Vdc
Discharge Cut-off Voltage	291.6Vdc
ESR/AC @1KHz 50% SOC	<200mΩ
Max. Continuous Charge Current	30A
Max. Continuous Discharge Current	30A
Round Trip Efficiency*1	96%
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Cooling Method	Natural
Shell Material	Metal & ABS plastic
Monitoring Data	System voltage,current, temperature, SOC,SOH,cycle,cell’s voltage
Parallel connection optional	Up to 4sets (400V 60KWh)
Communication	CAN, RS485

Weight	165kg±5kg
Dimensions(WxDxH)	520x732x653(mm)
Mount Options	On floor

Certificate Options

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Advantages

· graphene car battery comes in a variety of wonderful designs.

· The stipulate strict quality inspection through the whole process guarantees the product is of the quality that meets the industry standard.

· Competitively priced, the product is widely used by people from various fields.

Company Features

· It is the quality graphene car battery and excellent service that makes the leader in the industry.

· has strong product development capability and advanced production equipment.

· Thanks to the enterprise culture of we all aim to strive forward at one direction. Contact us!

Application of the Product

graphene car battery of can be widely used in various fields.

insists on providing customers with reasonable solutions according to their actual needs.
