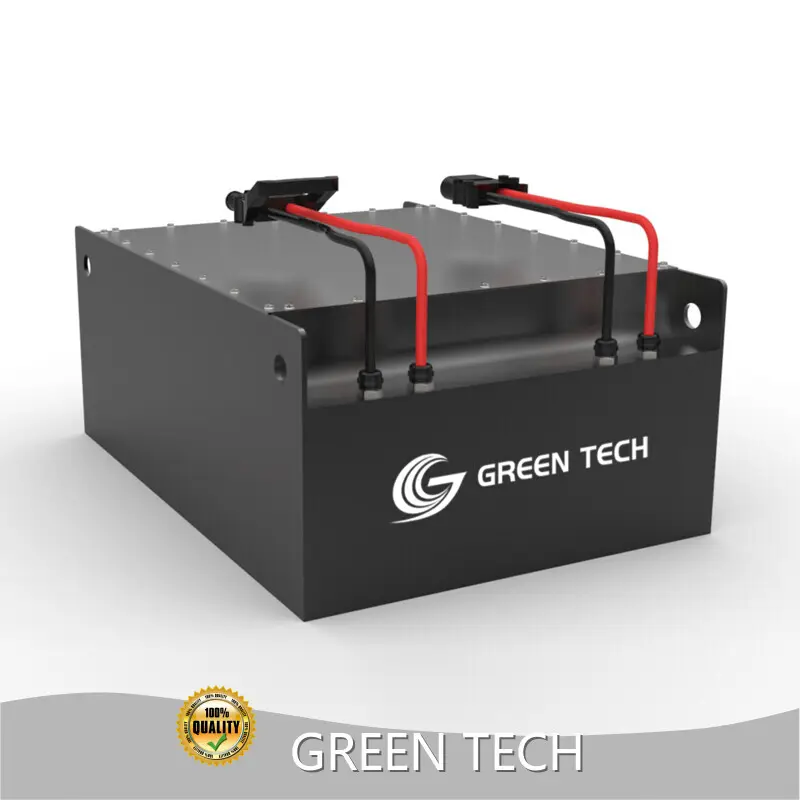

Gridscale Energy Storage 645x565x245mm 190kgmade in China

Product details of the gridscale energy storage

Product Information

The design of gridscale energy storage has turned many customers on. The product, with long-lasting performance and good durability, is of the highest quality. cooperates with many outstanding gridscale energy storage suppliers.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-24V5000-F
Energy storage	5.0kWh
Nominal Voltage	24Vdc
Maximum Charge Voltage	29Vdc
Discharge Cut-off Voltage	20Vdc
ESR/AC @1KHz 50% SOC	<10mΩ
Max. Continuous Charge Current	250A
Max. Continuous Discharge Current	250A
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Charge Temperature	0℃~+55℃
Discharge Temperature	-20℃~+60℃
Cooling Method	Natural
Shell Material	Metal & ABS plastic
Parallel Connection	Recommend within 10sets
Monitoring Data	SOC,voltage, module

Weight	190kg
Dimensions(WxDxH)	645x565x245(mm)
Mount Options	Wall / floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet
