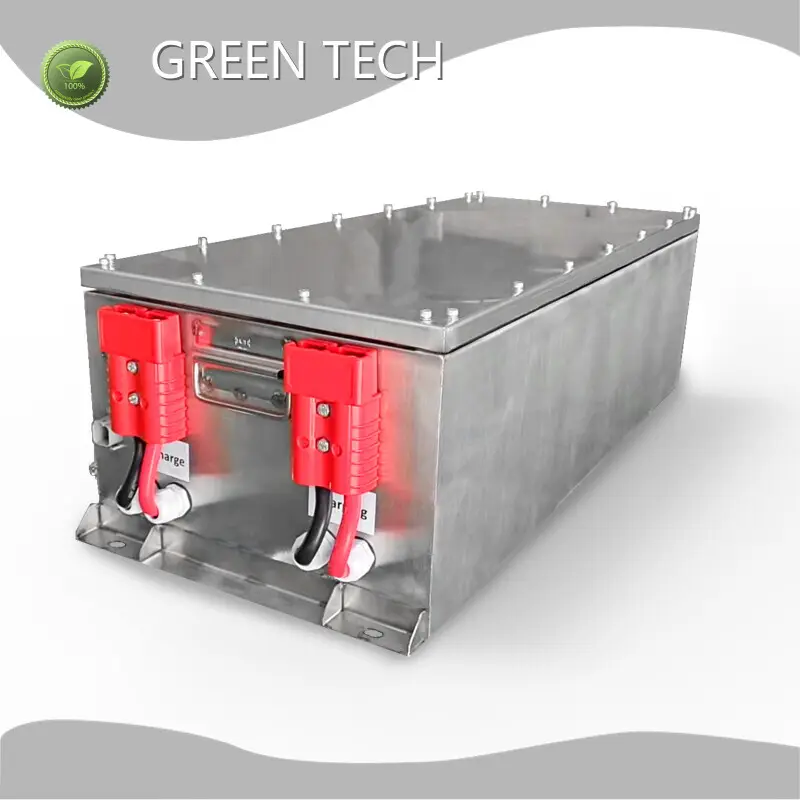

Gridscale Energy Storage 96Vdc

Company Advantages

· The high-quality materials prolong the service life of gridscale energy storage.

· We adhere to strict quality industry standards and fully guarantee that our products meet international standards.

· The expanded use of the product has and will continue to enable our customers to make profits.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-96V20k-B
Energy storage	20kWh
Nominal Voltage	96Vdc
Nominal Capacity	210Ah
Maximum Charge Voltage	109.2Vdc
Discharge Cut-off Voltage	78Vdc
ESR/AC @1KHz 50% SOC	<150mΩ
Max. Continuous Charge Current	100A
Max. Continuous Discharge Current	500A
Absolute Peak Current 10s	600A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle, cell’s voltage
Indicator light display	Capacity %
Environmental Protection	IP67
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Weight	190kg
Dimensions(WxDxH)	810x550x500(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Features

· Generally considered as an experienced provider of gridscale energy storage, takes pride in the field of R&D, design, and manufacture.

· The commitment to gridscale energy storage quality improvement and new product development is unwavering. has a complete product manufacturing and quality inspection system. focuses on fine production details to create exquisite gridscale energy storage.

· We consider that we have the responsibility to grow together with our society. Hence, occasionally we will hold cause-related marketing activities. We will donate to charity (cash, goods, or services) based on our product sales volume. Get more info!

Product Details

will show you product's specific details below.

Application of the Product

gridscale energy storage is available in a wide range of applications.

With a focus on customers' potential needs, has the ability to provide one-stop solutions.

Product Comparison

Compared with other same kind of products, gridscale energy storage produced by has the following advantages and features.
