gridscale energy storage is manufactured by a sophisticated production process. With a process of quality control, the quality is guaranteed to be high quality. can arrange delivery on due schedule thanks to large capacity per month.

Product Information

gridscale energy storage has the following advantages over other similar products.

Product Parameters

General Characteristics

Mechanical Specifications

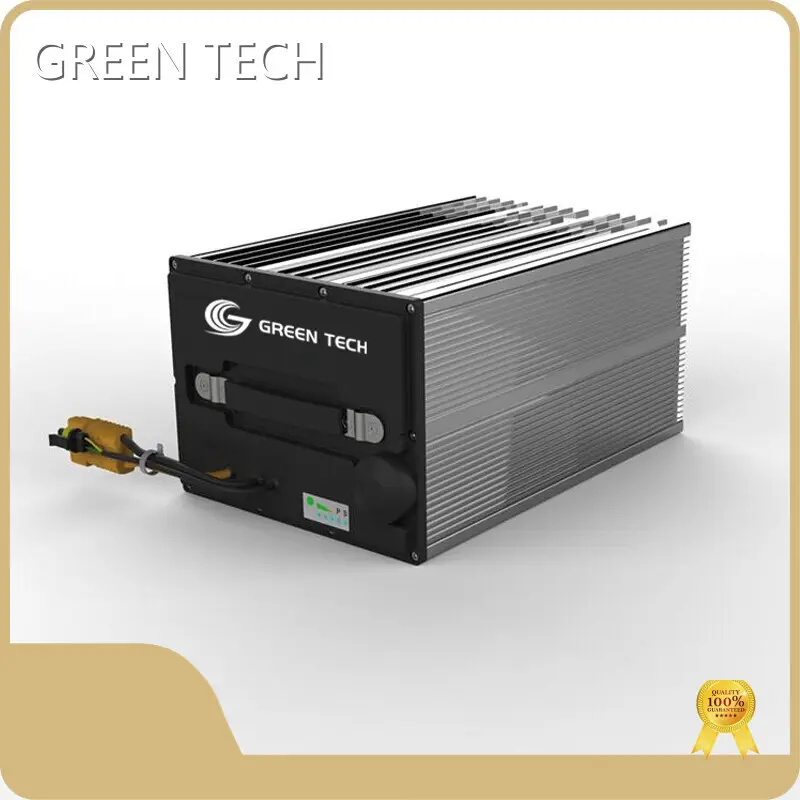

Part Number	GTEM-48V1920-M
Energy storage	1920Wh
Nominal Voltage	48Vdc
Maximum Charge Voltage	58.8Vdc
Discharge Cut-off Voltage	42Vdc
ESR/AC @1KHz 50% SOC	<10mΩ
Max. Continuous Charge Current	80A
Max. Continuous Discharge Current	80A
Cut-off current (charging)	4A
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	SOC,voltage,current, temperature
Series Connection	Not allowed
Parallel Connection	Recommend within 10sets
Series-Parallel Connection	Not allowed

Weight	22kg
Dimensions(WxDxH)	230x180x430(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

is a long-established company based in China. Over the years, we are engaged in the research, development, and production of gridscale energy storage. The strong technical force and strong R&D team are the guarantee for continuously development. From directing the gridscale energy storage marketplace today, will provide more and better professional service for clients. Welcome to visit our factory!
Our products are available in various types and reasonable price. Welcome people from all walks of life to inquire and discuss business.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
