Our pattern designs for group 27 deep cycle battery are diverse and you can compose a variety of patterns. Each product undergoes strict inspection before delivery. Seldom do we receive complaints about quality of group 27 deep cycle battery.

Product Information

The group 27 deep cycle battery produced by our company have superior quality, and the specific details of products are presented in the following section.

Product Parameters

General Characteristics

Mechanical Specifications

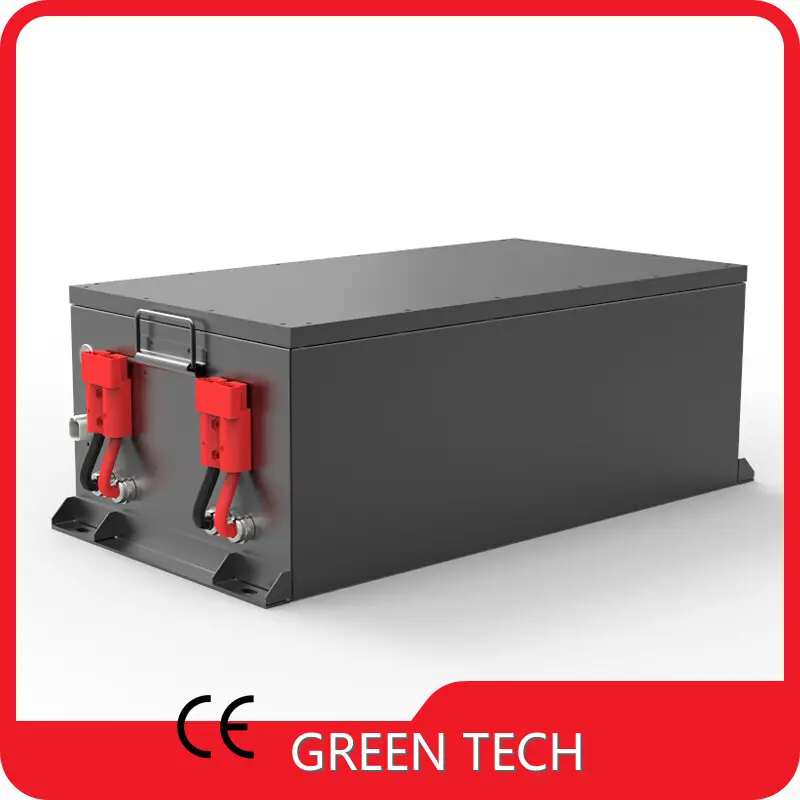

Part Number	GTEM-48V4500-G
Energy storage	4.5kWh
Nominal Voltage	48Vdc
Nominal Capacity	130Ah
Maximum Charge Voltage	58.8Vdc
Discharge Cut-off Voltage	40Vdc
ESR/AC @1KHz 50% SOC	<30mΩ
Max. Continuous Charge Current	200A
Max. Continuous Discharge Current	200A
Absolute Peak Current 3s	400A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	Module voltage,SOC
Indicator light display	Capacity %
Environmental Protection	IP65
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Weight	55kg
Dimensions(WxDxH)	720x355x252(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Information

has grown and prospered, occupying a crucial role in the developing and manufacturing of group 27 deep cycle battery in the market. We have a number of senior engineers and technical support. They are highly qualified and equipped with many years of experience in the field of group 27 deep cycle battery. Their abilities enable them to tackle customers' problems easily. The goal of our company is to become an innovative and distinctive manufacturing company. We will invest more in introducing advanced and high-tech manufacturing and developing facilities which can help us to broaden our product range.
We sincerely welcome customers with needs to contact us and cooperate with us!
