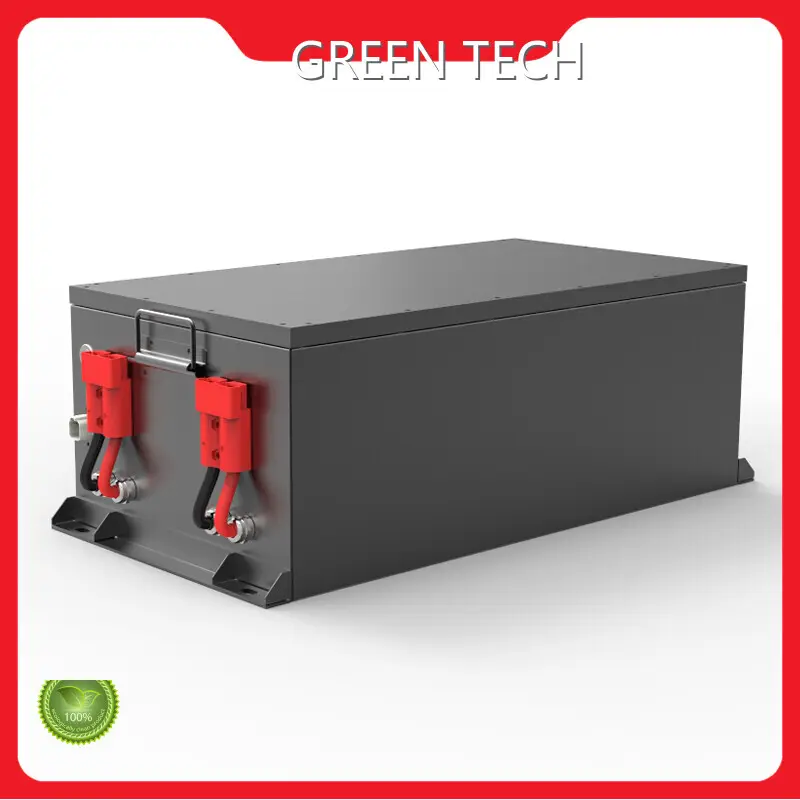

Group 27 Deep Cycle Battery for Sea Water

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-48V8500-G
Energy storage	8.5kWh
Nominal Voltage	48Vdc
Maximum Charge Voltage	58Vdc
Discharge Cut-off Voltage	42Vdc
ESR/AC @1KHz 50% SOC	<15mΩ
Max. Continuous Charge Current	200A
Max. Continuous Discharge Current	200A
Absolute Peak Current 10s	300A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	Module voltage,SOC
Indicator light display	Capacity %
Environmental Protection	IP65
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Weight	75kg
Dimensions(WxDxH)	950x400x252(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· All raw materials of group 27 deep cycle battery are strictly selected and then are put into a precision production.

· The product is in compliance with some of the toughest quality standards across the world.

· It is ideal for those who want to avail these product advantages at a moderate cost.

Company Features

· is an excellent group 27 deep cycle battery products manufacturer with an international vision.

· We have won praise from domestic and overseas customers. They are our loyal customers who have been cooperating with us for many years. We have strengthened our capacity to innovate more products for clients.

· believes the more professional our staff are, the better service will provide. Inquire now!

Application of the Product

The group 27 deep cycle battery developed by is widely used in industry.

According to different needs of customers, we could customize comprehensive and efficient solutions for them.
