High End Gridscale Energy Storage 50.3kWh Company 1
High End Gridscale Energy Storage 50.3kWh Company 1

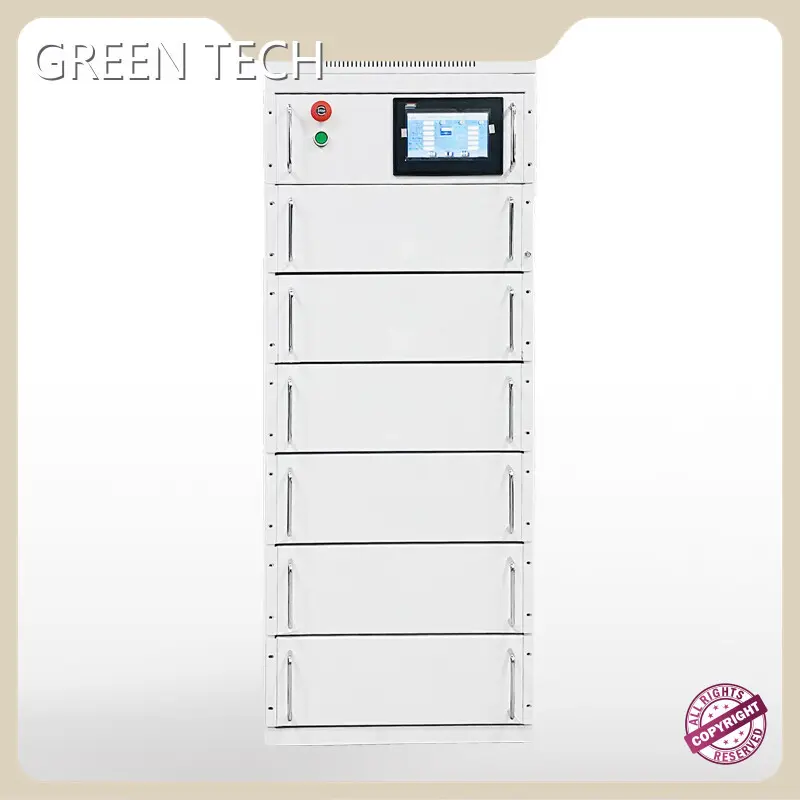

High End Gridscale Energy Storage 50.3kWh Company

Communication:
PCS: CAN EMS: Modbus RTU RS485
Series:
EM Series
Max. Continuous Charge Current:
120A
Energy storage:
50.3kWh
Dimensions(WxDxH):
611x735x1487(mm)
Inquiry
Send your inquiry

Product details of the gridscale energy storage


Product Description

gridscale energy storage is made using premium materials and comes in different design styles. It gives trouble free performance to the user as they are stringently tested on different quality parameters. Taking an innovative approach based on scientific research, is able to develop gridscale energy storage and enhance its performance.

Product Parameters
General Characteristics
Mechanical Specifications

Part Number

GTEM-400V50K-R

Energy storage

50.3kWh

Nominal Voltage

400Vdc

Maximum Charge Voltage

448.2Vdc

Discharge Cut-off Voltage

324Vdc

ESR/AC @1KHz 50% SOC

<100mΩ

Max. Continuous Charge Current

120A

Max. Continuous Discharge Current

120A

Round Trip Efficiency*1

97.5%

Projected Cycle Life ( 25℃)

20,000 times (70%EOL)

Recommended Depth of Discharge

≤90%

Maximum Depth of Discharge

100%

Cooling Method

Natural

Shell Material

Metal & ABS plastic

Monitoring Data

System voltage,current, temperature,

SOC,SOH,cycle,cell’s voltage

Parallel connection optional

Cannot be connected in parallel (If parallel connection is required, please inform in advance )

Weight

500kg

Dimensions(WxDxH)

611x735x1487(mm)

Mount Options

On floor

Certificate Options
1 (10)
1 (10)
2 (9)
2 (9)
3 (7)
3 (7)
4 (7)
4 (7)
5 (8)
5 (8)
6 (11)
6 (11)
7 (6)
7 (6)


Company Advantage

• Following the service concept of 'customer first, integrity cooperation', our company wholeheartedly provides high-quality and efficient service for customers.
• sale market covers the whole country. The products are also exported to Southeast Asia, Africa, and other countries and regions.
• During the development for years, has accumulated rich experience and has achieved excellent results. Now we take a certain position in the industry.
• Our company is rich in talents, and has gathered a group of professional talents. They have excellent performance in R&D, technology, marketing and management.
As a professional manufacturer, is only responsible for supplying all kinds of high-quality There is always a right choice for you. If you have any interest, please contact us.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
