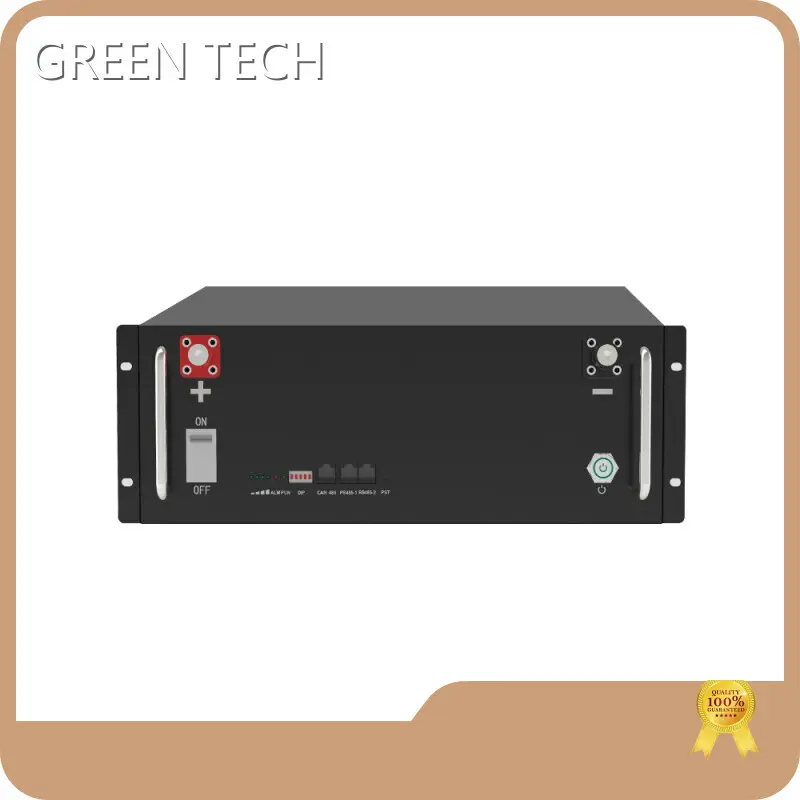

High End Gridscale Energy Storage Supplier for Swimming Pool 1

High End Gridscale Energy Storage Supplier for Swimming Pool 2

High End Gridscale Energy Storage Supplier for Swimming Pool 3

High End Gridscale Energy Storage Supplier for Swimming Pool

Series:

EF Series

Max. Continuous Discharge Current:

50A

Max. Continuous Charge Current:

50A

Discharge Cut-off Voltage:

44.8Vdc

Dimensions(WxDxH):

486x590x133.3(mm)

Inquiry

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEF-48V4500-E
Energy storage	4.71kWh
Capacity	92Ah
Nominal Voltage	51.2Vdc
Maximum Charge Voltage	57.6Vdc
Discharge Cut-off Voltage	44.8Vdc
ESR/AC @1KHz 50% SOC	<20mΩ
Max. Continuous Charge Current	50A
Max. Continuous Discharge Current	50A
Communication	CAN, RS485
Monitoring Data	System,voltage,current, temperature,SOC,SOH,cells’ voltage
Protection & Alarms	Over charge,over current,over temperature,over discharge
Anti-theft	Intelligent software lock; GPS, displacement lock,buzzer alarm
Projected Cycle Life ( 25℃)	6,000 times
Recommended Depth of Discharge	≤95%
Maximum Depth of Discharge	95%
Shell Material	Metal & ABS plastic
Cooling Method	Natural
Series Connection	Not allowed
Parallel Connection	Up to 16sets (need to clarify when place order)
Series and Parallel Connection	Add controller box (need to clarify when place order)

Weight	38kg
Dimensions(WxDxH)	486x590x133.3(mm)
Mount Options	Standard 19” rack mounted

Certificate Options

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Advantages

· gridscale energy storage is developed and manufactured using the latest technology materials.

· The product has been carefully tested to ensure it works properly.

· The product is provided as per the precise needs of the customers in the market.

Company Features

· Owing to the efforts of our hard working staff, there is a space available for in gridscale energy storage industry.

· To satisfy the needs of the gridscale energy storage industry, developed advanced technology which promotes its growth.

· is willing to provide clients with professional solutions with customized gridscale energy storage. Get info!

Application of the Product

gridscale energy storage is widely used in the industry.

According to different needs of customers, is capable of providing reasonable, comprehensive and the most cost-effective solutions for customers.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
