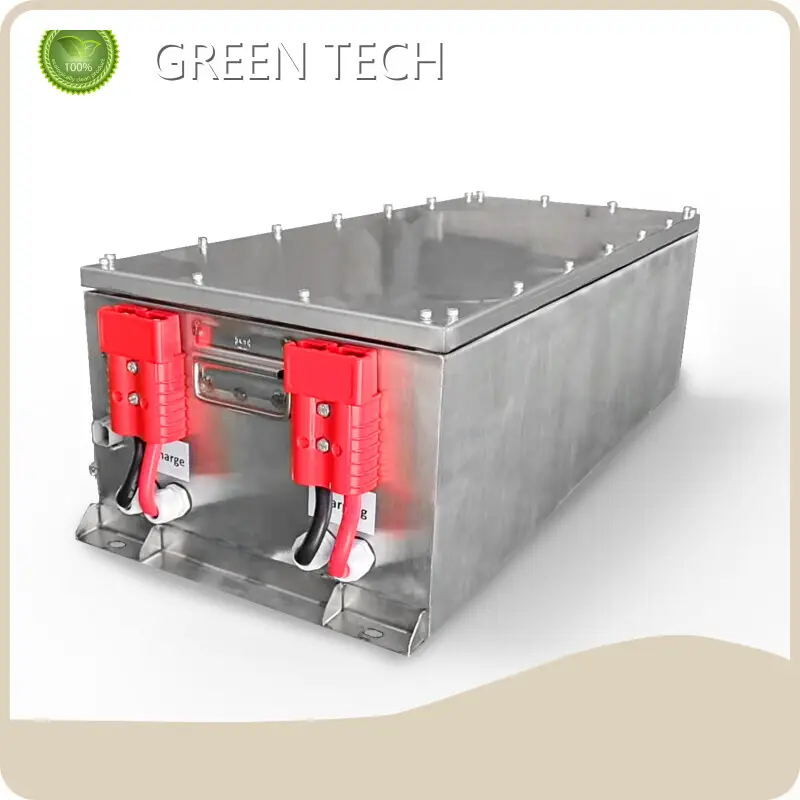

High Quality Capacitor Power Bank - GTEM-96V20K-B

Part Number:

GTEM-96V20K-B

Nominal Voltage:

96Vdc

Max. Continuous Charge Current:

100A

Energy storage:

20.2kWh

Discharge Cut-off Voltage:

78Vdc

more products

Send your inquiry

Company Advantages

· capacitor power bank is designed by adroit professionals in sync with industry norms.

· Our QC team takes strict testing methods in order to achieve high quality.

· realized since its inception that quality is crucial to stable business.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-96V20k-B
Energy storage	20kWh
Nominal Voltage	96Vdc
Nominal Capacity	210Ah
Maximum Charge Voltage	109.2Vdc
Discharge Cut-off Voltage	78Vdc
ESR/AC @1KHz 50% SOC	<150mΩ
Max. Continuous Charge Current	100A
Max. Continuous Discharge Current	500A
Absolute Peak Current 10s	600A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle, cell’s voltage
Indicator light display	Capacity %
Environmental Protection	IP67
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

Company Features

· Relying on the core strength in manufacturing capacitor power bank, has already stepped far ahead in the market.

· Great technology power qualifies to prosper and develop in capacitor power bank market.

· We supply a wide range of capacitor power bank which are made from high grade material and latest features. Check it!

Product Comparison

Compared with similar products, our capacitor power bank is provided with the following competitive advantages.
