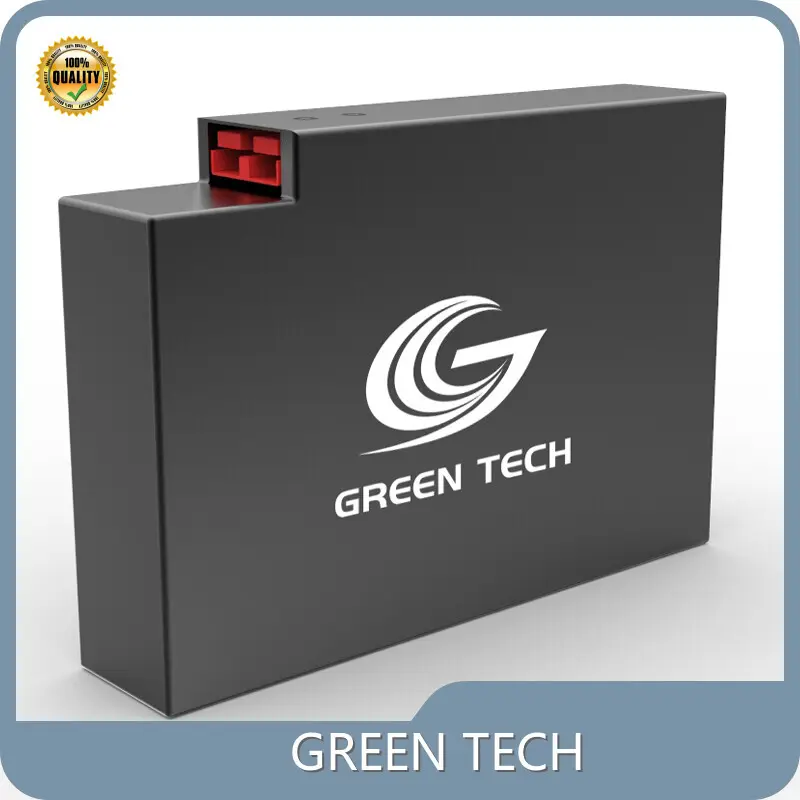

Highly Rated Battery Pack for Household 12Vdc Vendor for Business 1
Highly Rated Battery Pack for Household 12Vdc Vendor for Business 1

Highly Rated Battery Pack for Household 12Vdc Vendor for Business

Series:
EM Series
Nominal Voltage:
12Vdc
Max. Continuous Charge Current:
100A
Discharge Cut-off Voltage:
9Vdc
Dimensions(WxDxH):
52x242x170mm
Inquiry

Product details of the battery pack for household


Product Information

battery pack for household follows many standard operating procedures. After our strict quality control, all defects of the product have been thoroughly removed. It is highly recommended by the targeted customers.

Product Parameters
General Characteristics
Mechanical Specifications

Part Number

GTEM-12V138-E

Energy storage

138Wh

Nominal Voltage

12Vdc

Maximum Charge Voltage

16.8Vdc

Discharge Cut-off Voltage

9Vdc

ESR/AC @1KHz 50% SOC

<10Ω

Max. Continuous Charge Current

100A

Max. Continuous Discharge Current

100A

Cells Self-discharge Rate

2% per month

Projected Cycle Life ( 25℃)

20,000 times

Round Trip Efficiency*1

96%

Recommended Depth of Discharge

≤90%

Maximum Depth of Discharge

100%

Cooling Method

Natural

Shell Material

Metal & ABS plastic

Monitoring Data

System voltage,current, temperature,SOC,SOH,cycle,cell`s voltage

Weight

3.5kg

Dimensions(WxDxH)

52X242X170mm

Mount Options

Wall/ floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485
