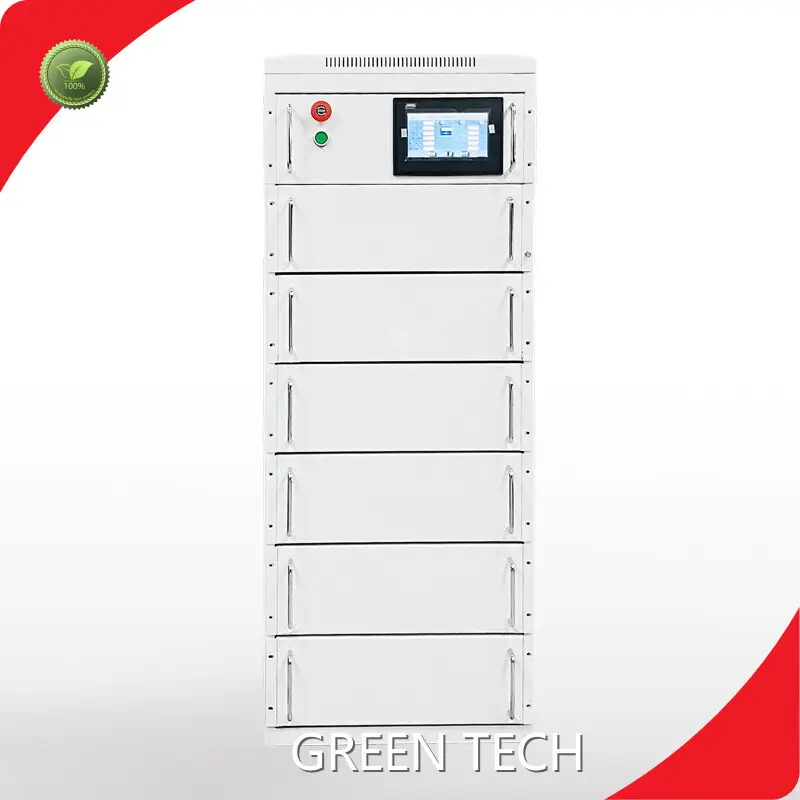

Home Energy Storage System 120A Wholesale -

Product details of the home energy storage system

Product Introduction

The materials of home energy storage system are of high quality and can meet the requirements of customers. The function of this product has achieved a breakthrough. The price of this product is competitive and has been widely used in the market.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-400V50K-R
Energy storage	50.3kWh
Nominal Voltage	400Vdc
Maximum Charge Voltage	448.2Vdc
Discharge Cut-off Voltage	324Vdc
ESR/AC @1KHz 50% SOC	<100mΩ
Max. Continuous Charge Current	120A
Max. Continuous Discharge Current	120A
Round Trip Efficiency*1	97.5%
Projected Cycle Life ( 25℃)	20,000 times (70%EOL)
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Cooling Method	Natural
Shell Material	Metal & ABS plastic
Monitoring Data	System voltage,current, temperature, SOC,SOH,cycle,cell’s voltage
Parallel connection optional	Cannot be connected in parallel (If parallel connection is required, please inform in advance )

Weight	500kg
Dimensions(WxDxH)	611x735x1487(mm)
Mount Options	On floor
