Home Energy Storage System 200A 1
Home Energy Storage System 200A 1

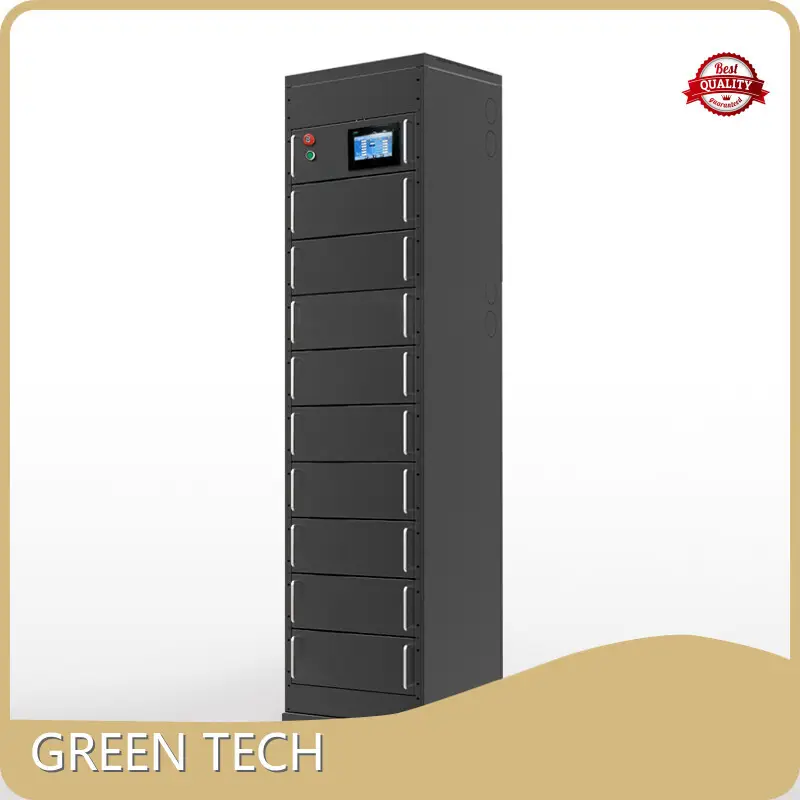

Home Energy Storage System 200A

Part Number:
GTEG-700V39K-R
Maximum Charge Voltage:
856.8Vdc
Max. Continuous Charge Current:
200A
Discharge Cut-off Voltage:
642.6Vdc
Dimensions(WxDxH):
560x700x1804(mm)
Inquiry

Company Advantages

· We develop home energy storage system in accordance with the green product development strategies.

· branded product is known for their longer service life.

· has won high attention and praise from its customers.

Product Parameters
General Characteristics
Mechanical Specifications

Part Number

GTEG-700V39K-R

Energy storage

39.4kWh

Nominal Voltage

703.8Vdc

Maximum Charge Voltage

856.8Vdc

Discharge Cut-off Voltage

642.6Vdc

ESR/AC @1KHz 50% SOC

<100mΩ

Max. Continuous Charge Current

280A

Max. Continuous Discharge Current

280A

Discharge rate

5C

Max. Continuous Output Power

196kW

Charge Temperature*1

-20℃~+60℃

Discharge Temperature*2

-40℃~+60℃

Operating Humidity

0~90% RH Non-condensing

Cells Self-discharge Rate

2% per month

Projected Cycle Life ( 25℃)

50,000 times

Recommended Depth of Discharge

≤ 90%

Maximum Depth of Discharge

100%

Monitoring Data

System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage

Terminal

Large power energy storage terminals

Environmental Protection

Indoor

Cooling Method

Liquid cooling ( cycle frequently )

Shell Material

Metal

Parallel Connection

 No limited ( add controller box )

communication

CAN, RS485

Weight

580kg

Dimensions(WxDxH)

560x700x1804(mm)

Mount Options

On floor

Certificate
1 (10)
1 (10)
2 (9)
2 (9)
3 (7)
3 (7)
4 (7)
4 (7)
5 (8)
5 (8)
6 (11)
6 (11)
7 (6)
7 (6)


Company Features

· has rich experience in producing home energy storage system.

· We have a competent team of quality controllers (QC). They have solid experience in the home energy storage system industry. They assure that quality is met at every stage of our production process from purchasing raw materials to delivery. Our products are exported via a worldwide distributor network. Now we have expanded and diversified our market focus from the Asian region to more places worldwide, which include North America, South America, Asia Pacific region, ASEAN region, Africa, and EU. Our global footprint spans five continents. The international demand for our products including home energy storage system demonstrates that we are able to meet or exceed the needs of people with different cultures.

· aims to satisfy customers with high quality products and excellent service. Call now!


Application of the Product

Our home energy storage system can be used in multiple areas of multiple industries.

Before developing a solution, we will fully understand the market situation and customer's needs. In this way, we can provide effective solutions for our customers.


Enterprise Advantages

has a high-quality management team, excellent R & D team, intimate service team, and also set up a professional distribution team to provide a good guarantee for product development, sales services, transportation, and distribution.

We strictly practice the service concept of 'demand-oriented and customer first'. And we are committed to providing all-round services for consumers to meet their different service needs.

worships the enterprise spirit, which is to be practical, hard-working and responsible. Our business is focused on honesty, pragmatism and mutual benefit. We provide high-quality products and services for numerous consumers depending on advanced technology and comprehensive management.

was successfully registered in We have developed the business for years.

With a vast sales market, our products are sold well in various regions in the country. Moreover, they are favored by many foreign customers.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
