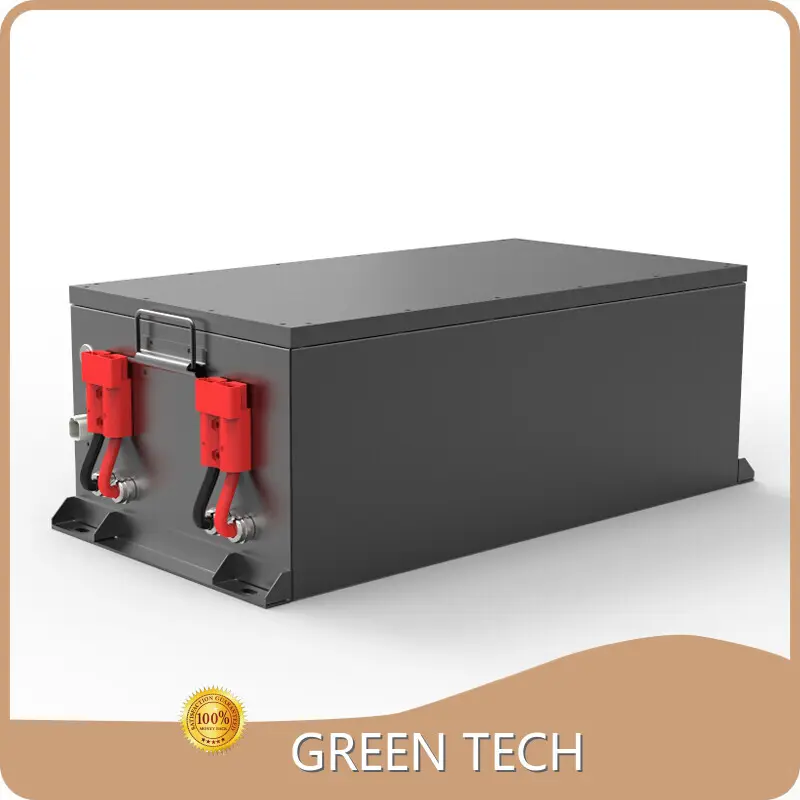

Home Energy Storage System 720x355x252mm

Weight:
55kg
Part Number:
GTEM-48V4500-G
Maximum Charge Voltage:
58.8Vdc
Discharge Cut-off Voltage:
40Vdc
Dimensions(WxDxH):
720x355x252mm
Inquiry

Product details of the home energy storage system


Product Description

home energy storage system is manufactured under the visionary guidance of trained professionals. It meets the client’s requirement in every term of quality and durability. has the first-class design level, quality engineering construction management, and good after-sales service support.

Product Parameters
General Characteristics
Mechanical Specifications

Part Number

GTEM-48V4500-G

Energy storage

4.5kWh

Nominal Voltage

48Vdc

Nominal Capacity

130Ah

Maximum Charge Voltage

58.8Vdc

Discharge Cut-off Voltage

40Vdc

ESR/AC @1KHz 50% SOC

<30mΩ

Max. Continuous Charge Current

200A

Max. Continuous Discharge Current

200A

Absolute Peak Current 3s

400A

Discharge Temperature

-20℃~+60℃

Charge Temperature

0℃~+55℃

Cooling Method

Natural cooling

Operating Humidity

0~90% RH Non-condensing

Cells Self-discharge Rate

2% per month

Projected Cycle Life ( 25℃)

20,000 times

Recommended Depth of Discharge

≤90%

Maximum Depth of Discharge

100%

Shell Material

Metal & ABS plastic

Monitoring Data

Module voltage,SOC

Indicator light display

Capacity %

Environmental Protection

IP65

Storage Conditions

-20℃~+40℃

25% ~ 95%RH

SOC>30%,one full charge needed per two months

Weight

55kg

Dimensions(WxDxH)

720x355x252(mm)

Mount Options

On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485
