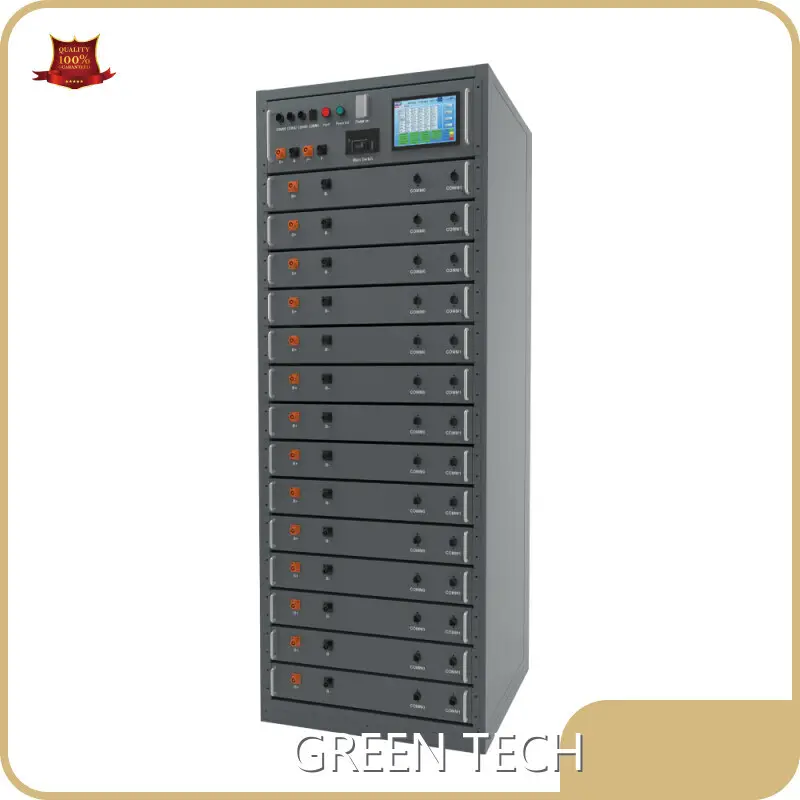

Home Energy Storage System Brand 150.5kWh 150A

Product details of the home energy storage system

Quick Overview

home energy storage system is fabricated from optimum raw material supplied from top-grade vendors. The rigorous quality management ensures that the product meets the intended quality standards. home energy storage system is widely used in the industry. GREEN TECH has set up its own global sales channel for home energy storage system.

Product Information

Our home energy storage system has better quality performance by virtue of the following excellent details.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEF-716V100K-R
Energy storage	150.5kWh
Nominal Voltage	716.8Vdc
Maximum Charge Voltage	806.4Vd.c (Recommended high voltage limit:784V)
Discharge Cut-off Voltage	604.8Vd.c (Recommended low voltage limit: 627.2V)
ESR/AC @1KHz 50% SOC	<150mΩ
Max. Continuous Charge Current	150A
Max. Continuous Discharge Current	150A
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	10,000 times(70%EOL)
Recommended Depth of Discharge	≤ 90%
Maximum Depth of Discharge	100%
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage
Terminal	Large power energy storage terminals
Environmental Protection	IP20 Indoor
Shell Material	Metal
Parallel Connection	No limited ( add controller box )
communication	CAN, RS485, LAN

Weight	1560kg
Dimensions(WxDxH)	801x832x2166(mm)
Mount Options	On floor

Certificate Options

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Advantages

lying in concentrates on the production and processing of With the management idea of 'accuracy for truth, innovation for development', our company organically integrates the industrial development and economic construction. We try our best to build a unique brand in the industry. We are equipped with a professional technology and R&D team. Based on the advanced technology, our team members have developed various quality products that are in line with the international standards. insists on providing customers with reasonable solutions according to their actual needs.
We have many years of experience in production and sales. And if you are interested in our products, feel free to contact us.
