Home Energy Storage System Fast Delivery

Product Parameters

General Characteristics

Mechanical Specifications

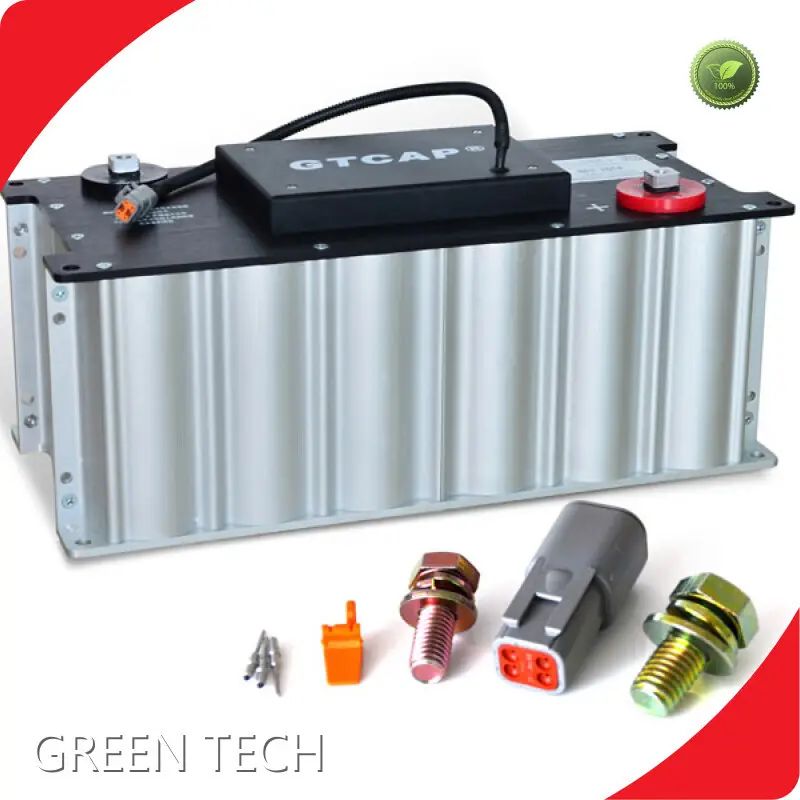

Part Number	GTSM-48V165FUS
Nominal capacitance	125 F
Capacitance tolerance	-10%~~+20%
Rated voltage	48V
Maximum absolute voltage	51V
ESR, DC	5 mΩ
Maximum continuous current (ΔT=40℃)	100 A
Maximum peak current, 1 sec.	2,275 A
Maximum leakage current (after 72hrs @ 25℃)	5.2 mA
Operating temperature range (Cell case temperature)	-40℃ to +65℃
Storage temperature range(Storage uncharged)	-40℃ to +70℃
Power terminals	M8 Screw Hole
Negative Terminal	M10 Screw Hole
Recommended torque - terminal	20/30 Nm
Vibration specification	SAE J2380 ISO16750-2, T14
Shock specification	SAE J2464
Colling	Natural Convection

Weight	20kg
Environmental protection	IP65
Internal temperature sensor	NTC Thermistor
Cell voltage monitoring	Overvoltage Alarm

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· The main components of home energy storage system are made from imported materials.

· Skillful employees and a range of equipment guarantee the product quality.

· has strong growth, upgrade and optimization capabilities.

Company Features

· is internationally regarded as an advanced home energy storage system manufacturer.

· The factory has introduced many quality manufacturing facilities. These facilities feature a high level of automation, which ultimately contributes to increased productivity and production costs.

· intends to be your global partner. Check now!

Application of the Product

Multiple in function and wide in application, home energy storage system can be used in many industries and fields.

We listen carefully to customer's requests and provide targeted solutions based on the bottleneck of customer. Therefore, we can help our customers to better solve problems.
