Hot Battery Energy Storage System Brand

Company Advantages

· By keeping track with the market development, battery energy storage system is given many kinds of designs that are popular in the market.

· In the production process, advanced testing equipment is used to test the products to ensure the high performance and consistency of the products.

· The sales representatives of will help you select right produces based on your targeted market and requirement.

Inverters 6kW-8kW-10kW

	Parameter		GT-EST06KH	GT-EST08KH	GT-EST10KH
Efficiency	Max Efficiency		>98 2%	>98 2%	>98 2%
PV Input	Max. PV input power(W)		7800	10400	13000
	Max. PV input voltage(V)		1000	1000	1000
	MPPT Operation Voltage Range (V)		180-950	180-950	180-950
	Number of MPPT/PV Strings		2/1	2/1	2/1
	Max. PV input current(A)		15/15	15/15	15/15
	Short- circuit current of PV input( A)		18/18	18/18	18/18
Battery	Max Input/Output Voltage(V)		550	550	550
	Operating Voltage Range(V)		180-550	180-550	180-550
	Max Charge/Discharge Current(A)		25/30	25/30	25/30
	Max Input/Output Power(W)		6000/6000	8000/8000	10000/10000
	Battery Type		Li-ion/Lead-acid
AC Input and Output	Rated Power(W)		6000	8000	10000
	Max. Apparent AC Power(VA)		6000	8000	10000
	Nominal AC Voltage(Vac)		380,3L/N/PE	380,3L/N/PE	380,3L/N/PE
	AC Power Frequency ( Hz)		50/60	50/60	50/60
	Max. AC Output Current(A)		10	12	15
	Power Factor Range		~1 (Adjusta	ble from 0.8 leading	to 0.8 lagging)
	OutputTHDi(@Nominal Output)		<3%	<3%	<3%
Genaral Data	Operating Temperature		-25C …+60C(>45C derating)
	Range Topology		Transformerless
	Cooling Method		Natural convection
	Ingress Protection Rating		IP65
	Relative Humidity		0-100%, no condensation
	DC Connection Type		MC/ Amphenol/ Phoenix
	AC Connection Type		Plug-in Connector
	Display		LCD
	Communication With Portal		RS485 (WiFi/GPRS Optinal)
	Communication With BMS		CAN
	Communication With Meter		RS485
Certification	Safety		IEC62109-1/-2
	EMC		EN61000-6-1/-2/-3,IEC61000
	On- Grid standard		AS4777.2:2020 ，NRS097-2-1:2017 ，PN-EN50549-1:2019,VDE-AR-N 4105:2018,EN50549-1:2019+AC:2019-4

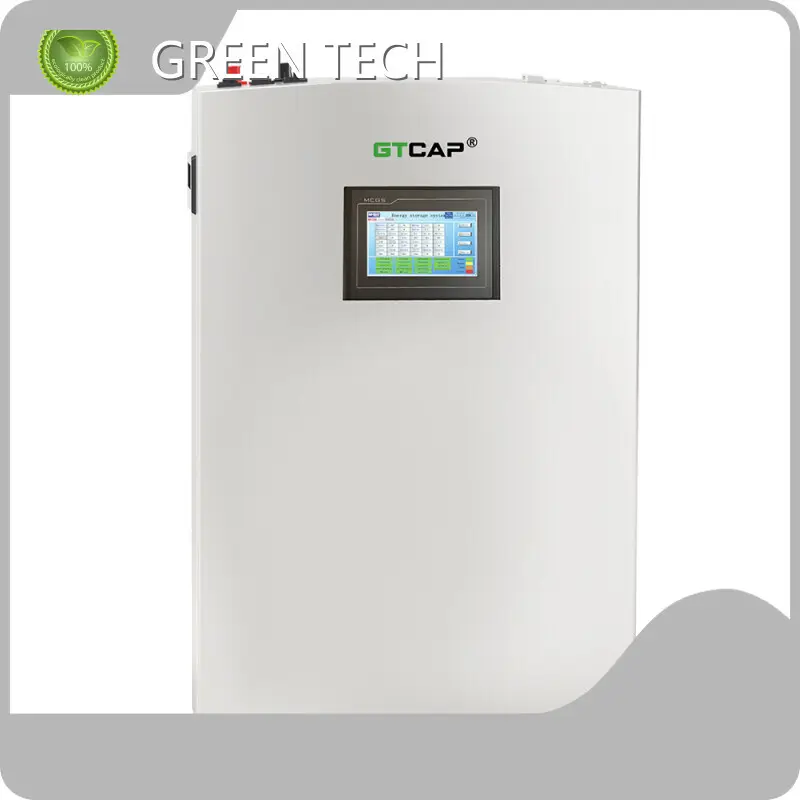

Battery energy storage system Capwall 400V14.4kWh/345V10kWh

Part Number	GTEM-400V14.4K-W	GTEF-345V10K-W
Energy storage	14.4kWh	10.3kWh
Nominal Voltage	400V/DC	345.6V/DC
Maximum Charge Voltage	453V/DC	390V/DC
Discharge Cut-off Voltage	292V/DC	300V/DC
ESR/AC @1KHz 50% SOC	<150mΩ 50A	<100mΩ 15A
Max. Continuous Charge Current	50A	15A
Max. Continuous Discharge Current	50A	30A
Round Trip Efficiency	96%	97.7%
Charge Temperature	0 C~ + 5 5 C	0 C~ + 4 5 C
Discharge Temperature	-20C~+60C	-30C~+60C
Self- discharge Rate	2% per month	2% per month
Recommended Depth of Discharge	≤90%	≤90%
Maximum Depth of Discharge	100%	100%
Cooling Method	Natural	Natural
Mounting Options	Wall/floor	Wall/floor
Shell Material	Metal & ABS plastic	Metal & ABS plastic
Communication	CANbus	CAN,RS485
Monitoring Data	System voltage,current,temperature,SOC,SOH,cycle,cell’s voltage
Compliance Information
Certificate Options	IEC62619:2017,IEC62040, EN 62133:2013, EN 55032:2015+AC:2016, EN 55035:2017,EN 61000-3-2:2014,  EN 61000-3-3:2013,  RoHS, UN38.3, MSDS

Solar Panel 390-415W

STC*

NOCT*

STC*

Thermal characteristics

Module type			YLxxxDF54e/2(xxx=Pmax)
Power output	Pmax	W	390	395	400	405	410	415
Power output tolerances	△Pmax	W				0/+5
Module efficiency	ηm	%	19.97	20.23	20.48	20.74	21.00	21.25
Voltage at Pmax	Vmpp	V	30.27	30.42	30.56	30.71	30.86	31.00
Current at Pmax	Impp	A	12.89	12.99	13.09	13.19	13.29	13.39
Open-circuit voltage	Vac	V	36.80	36.90	37.00	37.10	37.20	37.30
Short-circuit voltage	Isc	A	13.68	13.77	13.86	13.95	14.04	14.13

*STC:1000W.m-2 irradiance,25℃ cell temperature,AM 1.5 spectrum according to EN 608904-3

Power output	ηm	%	296.85	300.63	304.34	308.17	312.03	315.80
Voltage at Pmax	Vmpp	V	28.87	29.01	29.01	29.14	29.43	29.56
Current at Pmax	Impp	A	10.28	10.36	10.44	10.52	10.60	10.68
Open- circuit voltage	Voc	V	34.98	35.08	35.17	35.27	35.36	35.46
Short- circuit voltage	Isc	A	11.02	11.09	11.17	11.24	11.31	11.38

*NOCT:open-circuit module operation temperature at 800W.m-2 irradiance,20℃ ambient temperature,1m*s-1 wind speed.

Power output	Pmax	%	426.86	432.33	437.80	443.27	448.75	454.22
Voltage at Pmax	Vmpp	V	30.27	30.42	30.56	30.71	30.86	31.00
Current at Pmax	Impp	A	14.10	14.21	14.33	14.43	14.54	14.65
Open- circuit voltage	Voc	V	36.80	36.90	37.00	37.10	37.20	37.30
Short- circuit voltage	Isc	A	14.97	15.07	15.17	15.27	15.37	15.47

*Bifaciality coefficient is 70% ±5%，rear irradiance is 135W.m-2

Nominal operating cell temperature	NOCT	C	39±2
Temperature coefficient of Pmax	γ	% / C	-0.35
Temperature coefficient of Voc	β	% / C	-0.28 0.05

*Bifaciality coefficient is 70% ±5%，rear irradiance is 135W.m-2

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

All-high

Company Features

· is known for its strong capability for designing and manufacturing battery energy storage system and has been widely accepted in the industry.

· has domestic first-rate designers, good-quality technicians, and managing personnel. gained honor in the profession by its excellent equipment, advanced technology and modern management. The excellent equipment ensures the exact workmanship and the efficient in the process of producing battery energy storage system.

· has always encouraged to provide better service to customers. Contact!

Enterprise Advantages

Our company has professional production team and modern management team. They work together to create a new future for our company.

With a professional service team, is able to provide all-round and professional services which are suitable for customers according to their different needs.

In the following days, our company will keep carrying forward the enterprise spirit of 'integrity, sincerity and integrity'. During the development, we always believe that details determine the brand and innovations change destiny. We are committed to providing consumers with better products and more professional services, and striving to become a domestic leading company with strong industry influence.

Our company was founded in After the development for many years, we have gained rich industry experience.

products sell well at home and abroad.
