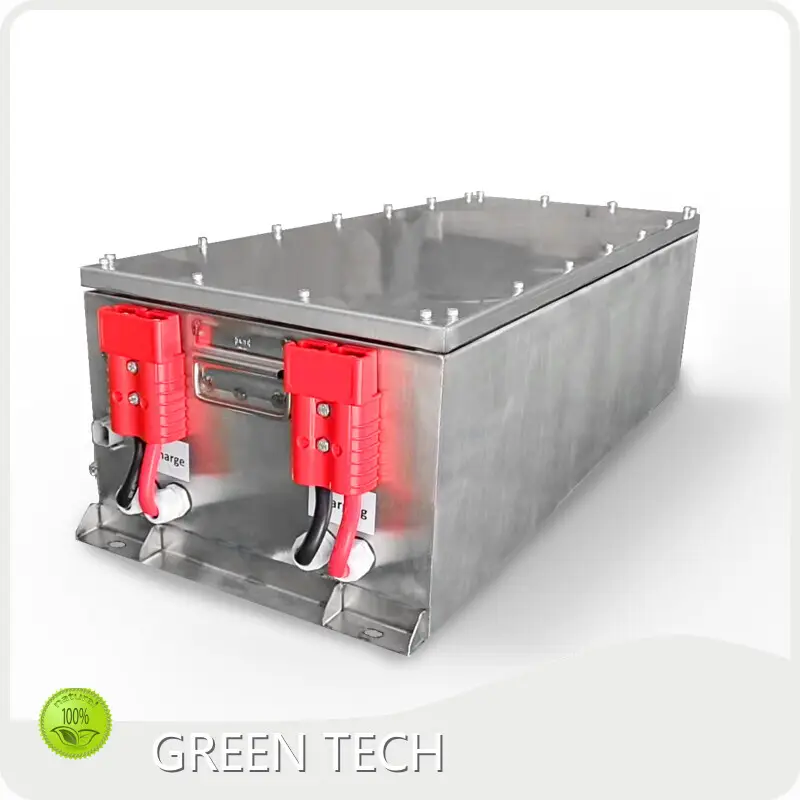

Hot Battery Pack for Household 500A Brand 1
Hot Battery Pack for Household 500A Brand 2
Hot Battery Pack for Household 500A Brand 1
Hot Battery Pack for Household 500A Brand 2

Hot Battery Pack for Household 500A Brand

Weight:
190kg
Series:
EM Series
Max. Continuous Discharge Current:
500A
Energy storage:
20.2kWh
Dimensions(WxDxH):
810x550x500mm
Inquiry

Product details of the battery pack for household


Product Information

persists to use battery pack for household material. The product is tested with reliable test instruments to ensure reliable product quality and good performance. The product has been considered to have a wide development prospect.

Product Parameters
General Characteristics
Mechanical Specifications

Part Number

GTEM-96V20k-B

Energy storage

20kWh

Nominal Voltage

96Vdc

Nominal Capacity

210Ah

Maximum Charge Voltage

109.2Vdc

Discharge Cut-off Voltage

78Vdc

ESR/AC @1KHz 50% SOC

<150mΩ

Max. Continuous Charge Current

100A

Max. Continuous Discharge Current

500A

Absolute Peak Current 10s

600A

Discharge Temperature

-20℃~+60℃

Charge Temperature

0℃~+55℃

Cooling Method

Natural cooling

Operating Humidity

0~90% RH Non-condensing

Cells Self-discharge Rate

2% per month

Recommended Depth of Discharge

≤90%

Maximum Depth of Discharge

100%

Shell Material

Metal & ABS plastic

Monitoring Data

System voltage,current, temperature,SOC,SOH,cycle,

cell’s voltage

Indicator light display

Capacity %

Environmental Protection

IP67

Storage Conditions

-20℃~+40℃

25% ~ 95%RH

SOC>30%,one full charge needed per two months

Weight

190kg

Dimensions(WxDxH)

810x550x500(mm)

Mount Options

On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)
1 (10)
2 (9)
2 (9)
3 (7)
3 (7)
4 (7)
4 (7)
5 (8)
5 (8)
6 (11)
6 (11)
7 (6)
7 (6)

Download


Company Feature

• sales network covers all major domestic cities and other countries and regions, such as America, Australia, and Southeast Asia.
• Established in has a development history of years. We constantly improve core competency and pursue quality excellence. We are committed to providing quality products for each customer.
• owns a superior geographical location. There are traffic convenience, elegant ecological environment, and abundant natural resources.
Contact to order online and you may have the chance to enjoy discounts!

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
