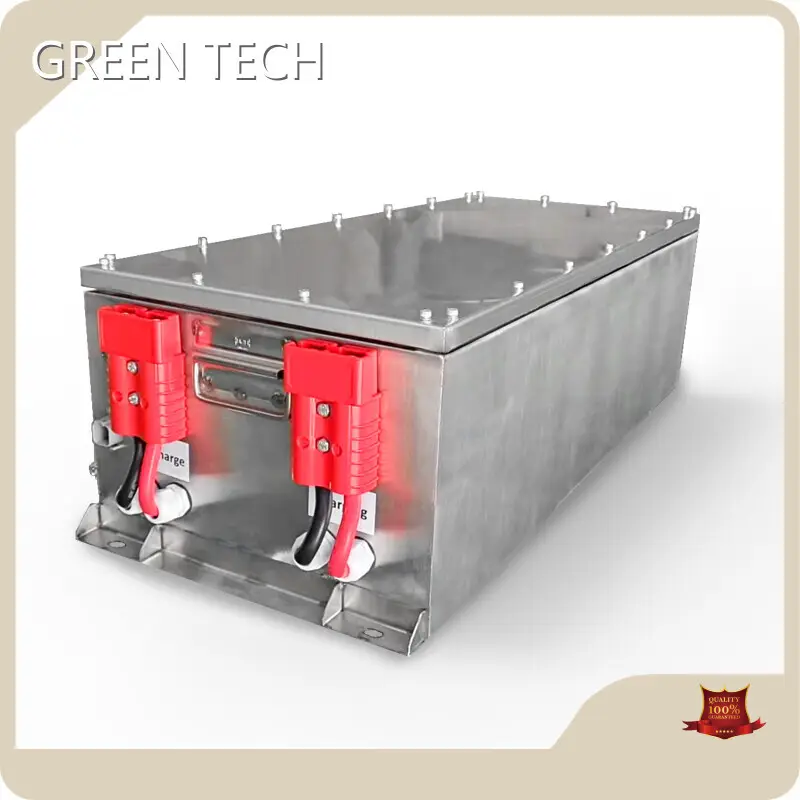

Hot Graphene Battery Electric Car 109.2Vdc Brand

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-96V20k-B
Energy storage	20kWh
Nominal Voltage	96Vdc
Nominal Capacity	210Ah
Maximum Charge Voltage	109.2Vdc
Discharge Cut-off Voltage	78Vdc
ESR/AC @1KHz 50% SOC	<150mΩ
Max. Continuous Charge Current	100A
Max. Continuous Discharge Current	500A
Absolute Peak Current 10s	600A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle, cell’s voltage
Indicator light display	Capacity %
Environmental Protection	IP67
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Weight	190kg
Dimensions(WxDxH)	810x550x500(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· Innovation-oriented design: graphene battery electric car is innovatively designed by a team of professional designers. They are full of innovative ideas and are willing to embrace the changing market demands.

· The product is tested with reliable test instruments to ensure reliable product quality and good performance.

· is always here to offer a hand for design and installation for graphene battery electric car.

Company Features

· also known as is a certified high-tech company which has been specializing in designing and manufacturing graphene battery electric car.

· has received many positive feedback about our quality and you can be assured of it.

· firmly believes that the excellent customer service will bring unforgettable shopping experience for more customers. Inquiry!

Application of the Product

The graphene battery electric car produced by our company can be applied to different fields and scenarios. So the different requirements of different people can be satisfied.

In addition to high-quality products, also provides effective solutions based on the actual conditions and the needs of different customers.
