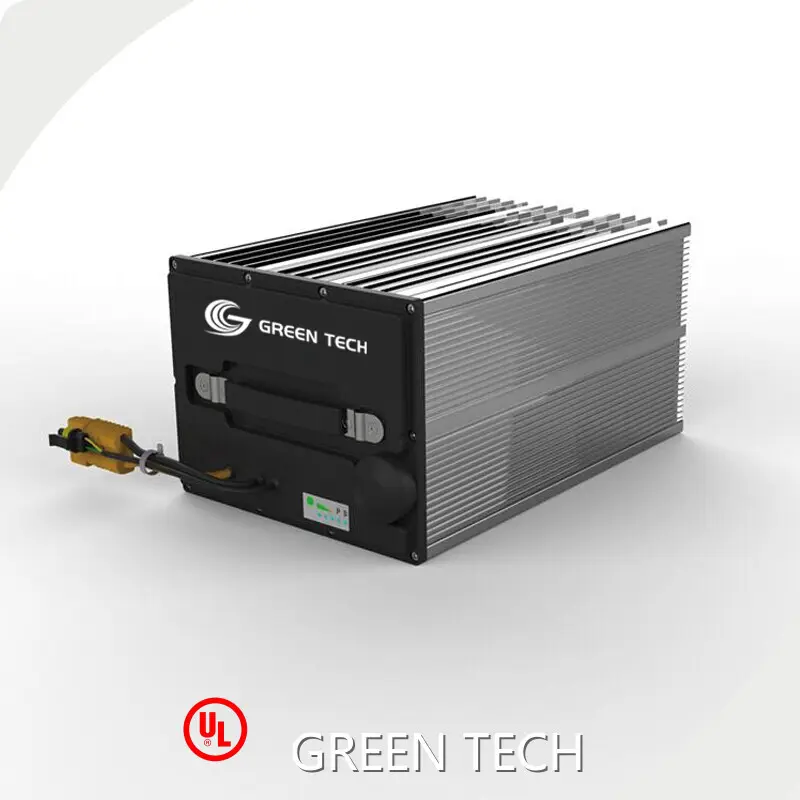

Hot Power Storage Systems 230x180x360mm Brand

Company Advantages

· When manufacturing power storage systems, we take the quality of raw materials into consideration.

· The product has been tested to be in compliance with many quality norms.

· The offered product is extensively used for customers in the industry.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-60V1560-M
Energy storage	1560Wh
Nominal Voltage	60Vdc
Maximum Charge Voltage	71.4Vdc
Discharge Cut-off Voltage	47.6Vdc
ESR/AC @1KHz 50% SOC	<30mΩ
Max. Continuous Charge Current	80A
Max. Continuous Discharge Current	80A
Cut-off current (charging)	4A
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	SOC,voltage,current, temperature
Series Connection	Not allowed
Parallel Connection	Recommend within 10sets
Series-Parallel Connection	Not allowed

Weight	20kg
Dimensions(WxDxH)	230x180x360(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Features

· cooperated with many esteemed companies for power storage systems.

· With the high technology equipped, produces power storage systems with excellent quality.

· GREEN TECH will provide excellent service and so maximize the benefits for our customers. Ask!

Product Details

Compared with ordinary products, our power storage systems has the specific differences as follows.

Enterprise Advantages

Our company has a high-quality management team, a professional operation team, and a caring service team. All this provides a good guarantee for our production, sales and service.

With a comprehensive management service system, is capable of providing customers with one-stop and professional services.

Aiming to build an 'internationally famous enterprise', comprehensively promotes business upgrading and management transformation, enhances its value competitiveness, and strives to become a leading company with outstanding core business in the industry.

Since founded in has gradually become the leader in the field of with experience of years.

Our products meet national and international safety requirements. They are not only sold domestically but also exported to countries and regions such as
