Communication:
MODBUS TCP
Part Number:
GTEF-512V50KW/100KWh-R
Maximum Charge Voltage:
576Vd.c
Max. Continuous Discharge Current:
120A
Max. Continuous Charge Current:
120A
Inquiry
Send your inquiry

Product details of the battery energy storage system


Product Overview

battery energy storage system is the classic model made by GREEN TECH, which is very popular in the Chinese market. The product is tested with reliable test instruments to ensure reliable product quality and good performance. In the field of global industrial battery energy storage system, will strive to be the best.


Product Introduction

Compared with other products in the same category, battery energy storage system has more advantages, specifically in the following aspects.

Product Parameters
General Characteristics
Mechanical Specifications

Part Number

GTEF-512V50KW/100KWH-R

Energy storage

107.5kWh

Nominal Voltage

512Vd.c

Maximum Charge Voltage

576Vd.c

Discharge Cut-off Voltage

448Vd.c

ESR/AC @1KHz 50% SOC

<100mΩ

Max. Continuous Charge Current

120A

Max. Continuous Discharge Current

120A

Operating Humidity

0~90% RH Non-condensing

Cells Self-discharge Rate

2% per month

Projected Cycle Life ( 25℃)

10,000 times

Recommended Depth of Discharge

≤ 90%

Maximum Depth of Discharge

100%

Monitoring Data

System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage

Terminal

Large power energy storage terminals

Environmental Protection

IP20 Indoor

Shell Material

Metal

Parallel Connection

No limited ( add controller box )

communication

CAN, RS485, TCP

Weight

1315kg

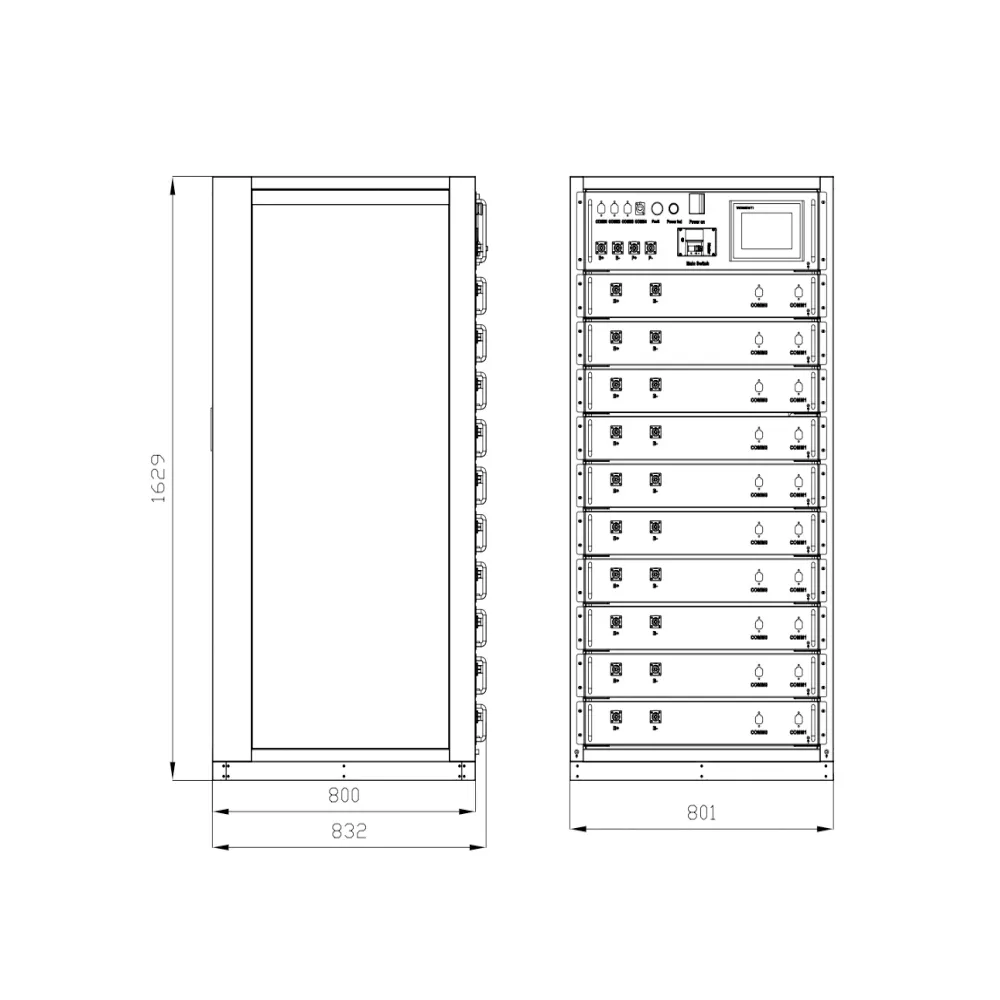

Dimensions(WxDxH)

801x832x1629(mm)

Mount Options

On floor

Certificate Options
1 (10)
1 (10)
2 (9)
2 (9)
3 (7)
3 (7)
4 (7)
4 (7)
5 (8)
5 (8)
6 (11)
6 (11)
7 (6)
7 (6)


Company Introduction

Favored by more and more customers, now gets more popular in the field of battery energy storage system. has built a solid technology foundation over years of development in the battery energy storage system field. research is unique and innovative and our battery energy storage system are of excellent quality. Please contact us!
Do not hesitate to contact us if you are interested in our

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
